LSA/UL

Thor Air Thor 1 / Thor 11

TerryLeave a comment

The Thor-11-28 is a single-engine, high wing taildragger, strut braced, double-surface wings, independent 3-axis controls. The engine is tractor mounted and the undercarriage is independent fully suspended gear, tail-dragger type, fully suspended steerable tailwheel. 1984 PRICE: $6,236. The THOR-11-40 is of the same basic configuration as THOR-11-28. LANDING GEAR: Same as Thor-11-28. 1984 PRICE: $6,655.

Thor 1
Empty wt: 238 lbs
Wing span: 32’3”
Wing area: 167 sq.ft
Height: 7’9”
Length: 13’9”
Fuel cap; 5 USG
Construction: Aluminium, Dacron
Engine: Rotax 277 (268 cc) 28 hp
Static thrust: 275 lbs
Max wt: 500 lbs
Stall: 22 mph
Max speed: 63 mph
Vne: 75 mph
Climb rate: 700 fpm @ 30 mph
Design limit: +5, -3g
Glide ratio: 9-1
Wing loading: 2.99 lbs/sq.ft
Power loading: 17.86 lbs/hp
Seats: 1

Thor-11-28
Engine: Rotax 277, 28 hp, 2:1 reduction
Wingspan 32.3’
Wing area 167 sq.ft
Empty weight 238 lbs
Gross weight 500 lbs
Cruise speed 55 mph
Stall speed 22 mph
Climb 700 fpm
Takeoff run 50-100’
Landing roll 30-75’

Thor-11-40
Engine: Rotax 447, 40 hp, 2.5:1 reduction
Wingspan 32.3’
Wing area 167 sq.ft
Empty weight 253 lbs
Gross weight 500 lbs
Cruise speed 55 mph
Stall speed 22 mph
Climb 1000 fpm
Takeoff run 30-50’
Landing roll 30-75’

Thesis Aviation The Sportster

TerryLeave a comment

The Sportster features a see through pylon. First flown in 1997, the 1998 kit price was US$4994.

Engine: Kawasaki 340, 38 hp
HP range: 38-55
Height: 6.9 ft
Length: 14 ft
Wing span: 17.5 ft
Wing area: 82 sq.ft
Fuel capacity: 5 USG
Empty weight: 252 lb
Gross weight: 460 lb
Top speed: 75 mph
Cruise: 62 mph
Stall: 29 mph
Range: 125 sm
Rate of climb: 700 fpm
Takeoff dist: 200 ft
Landing dist: 200 ft
Seats: 1
Landing gear: tailwheel

Thesis Aviation The Speedster

TerryLeave a comment

A staggerwing racer design with the upper wing flush with the fuselage top. First flown in 1995 and kits were available.

Engine: Kawasaki 440-A, 40 hp
HP range: 38-52
Height: 5 ft
Length: 13.7 ft
Wing span: 17.5 ft
Wing area: 77.5 sq.ft
Fuel capacity: 5 USG
Empty weight: 252 lb
Gross weight: 460 lb
Top speed: 75 mph
Cruise: 62 mph
Stall: 29 mph
Range: 125 sm
Rate of climb: 700 fpm
Takeoff dist: 150 ft
Landing dist: 200 ft
Seats: 1
Landing gear: tailwheel

The New Kolb Kolbra

TerryLeave a comment

Engine: Rotax 582, 65 hp
HP range: 65-100
Length: 24 ft
Wing span: 28.3 ft
Wing area: 154 sq.ft
Fuel capacity: 10 USG
Empty weight: 495 lb
Gross weight: 1000 lb
Cruise: 75 mph
Stall: 45 mph
Range: 290 sm
Rate of climb: 1000 fpm
Takeoff dist: 200 ft
Landing dist: 200 ft
Seats: 2 tandem
Cockpit width: 22.75 in
Landing gear: tailwheel
LSA: yes

The Airplane Factory Eindecker

TerryLeave a comment

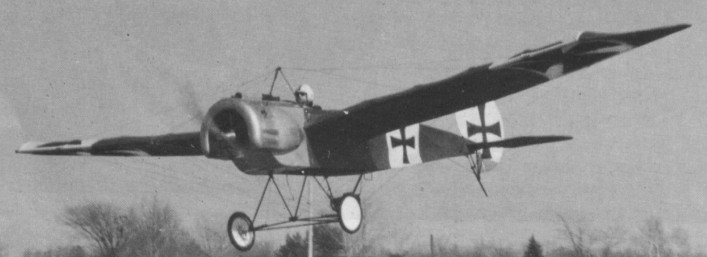

One aircraft that lends itself admirably to replication by virtue of its design is the Fokker Eindecker. This 1914 design has been reproduced in scale by the Aeroplane Factory, Dayton, Ohio; its original flying and landing wire concept adapting readily to modern microlight construction methods. Powered by a Rotax 277 developing 27 hp, this 36 foot wing span replica has a cruise speed of 45 mph and comes in kit form. Centre mounted joy stick, rudder pedals, tail wheel steerable through rudder pedals.

Empty wt: 251 lb
Wing span: 36’
Wing area: 154 sq.ft
Height: 8’
Length: 20’6”
Fuel cap; 4.4 USG
Construction: Aluminium, Dacron, Steel
Engine: Rotax 277 (268 cc) 28 hp
Static thrust: 275 lb
Max wt: 500 lb
Stall: 23 mph
Max speed: 63 mph
Vne: 70 mph
Climb rate: 500 fpm @ 30 mph
Design limit: +4, -2g
Glide ratio: 7.8-1
Wing loading: 3.25 lbs/sq.ft
Power loading: 17.26 lbs/hp
