1926 Bulgarian parasol single seat sailplane
Herman Vinter assembled one. Named after a Bulgarian national hero, Lt Vekilski.

ZASPL, the Aviation Association of students of the Lwów Technical University, was the oldest aviation organization in Poland. Revived after World War I, by 1926 it had workshops in Lwów which began building the glider designs of ZASPL member Wacław Czerwiński. The successful Czerwiński CW III, a 1929 open frame introductory glider, had shown the utility of the type for basic training but it was expensive and ready for development. In response, Czerwiński and Władysław Jarworski designed the CWJ (a fusion of their initials) to fill the national gliding clubs’ needs.

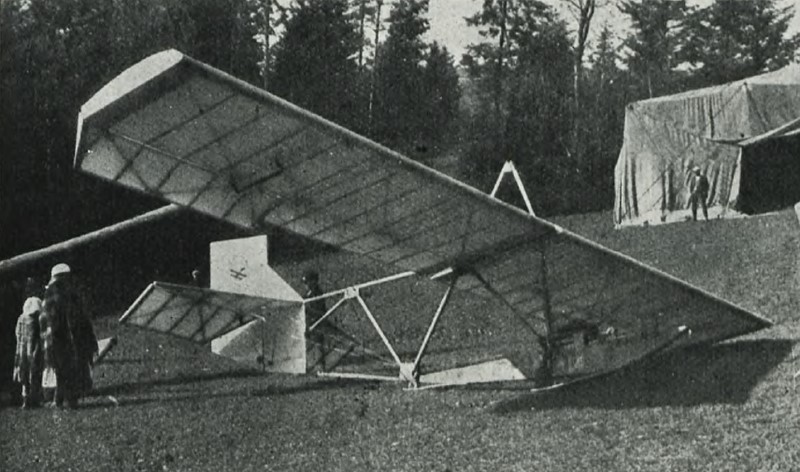

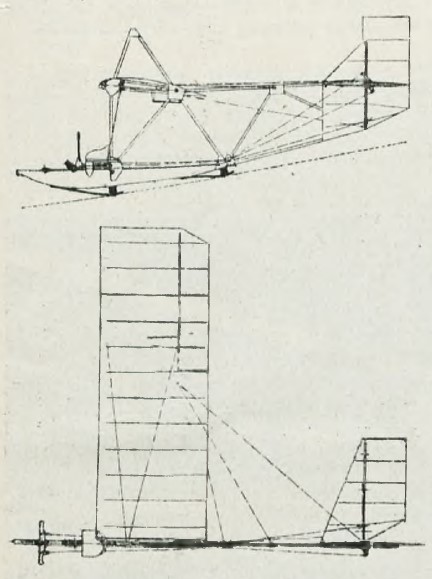

The fuselage of the CWJ was essentially an uncovered pine Warren girder, though the rear part of the lower longeron or chord was upward-curved. The unprotected pilot’s seat was forward of the wing on a pine fuselage box which reached back to about mid fuselage. The box also carried twin sprung landing skids. The CWJ’s two part, twin spar wing was rectangular in plan. Mounted on the upper fuselage longeron, it was wire braced from above via an inverted-V cabane and from below to the lower longeron. Short ailerons reached the tips.

At the rear a broad fin occupied the gap between the upper and lower longerons and had a short, triangular extension above. An almost rectangular rudder ran upwards from the bottom of the fin, extending well above it. The tailplane, mounted on the upper longeron, was triangular in plan. It carried elevators which were rectangular apart from cut-outs for rudder movement.

The CWJ first flew in October 1931, tow-launched by a car.

An improved version, the CWJ-bis Skaut (Scout) made its first flight on 3 August 1933 at Czerwony Kamień, the base of the Lwów Aeroclub Gliding School. It had a wing increased in span by 900 mm (35 in), a corresponding 11% increase in wing area and had washout at the wingtips which improved aileron response. The wire wing bracing of the CWJ was replaced by pairs of parallel struts and the fuselage box was strengthened. The empennage was also modified; the fin now had a triangular, rather than straight, leading edge and at some later time the top of the rudder was made almost semi-circular. A few had ply-covered cockpits. Early tests showed the sought-after improvement in handling.

Shortly after its successful early tests, early orders from both the government and LOPP took the CWJ into production. Design drawings were also produced for amateur builders and some parts and materials were made available from ZAPL. According to Cynk about eighty examples of the CWJ and CWJ-bis were built in all, including about twenty of the latter, though samalotypolskie.pl says that there were one hundred altogether, eighty of them CWJs. They were used by clubs across Poland and were easy to transport, tough, could be car-launched and were stable in flight though with limited performance. By about 1938 both variants had been retired, displaced by the newer, better performing Kocjan Czajka and Kocjan Wrona.

CWJ
Wingspan: 8.75 m (28 ft 8 in)
Wing area: 13 m2 (140 sq ft)
Length: 5.59 m (18 ft 4 in)
Height: 2.21 m (7 ft 3 in)
Empty weight: 80 kg (176 lb)
Gross weight: 150 kg (331 lb)
Stall speed: 42 km/h (26 mph, 23 kn) minimum speed
Maximum glide ratio: 12 maximum at 50 km/h (31 mph; 27 kn)
Rate of sink: 1.3 m/s (260 ft/min) minimum
Crew: One

ZASPL, the Aviation Association of students of the Lwów Technical University, was the oldest aviation organization in Poland. Revived after World War I, by 1926 it had workshops in Lwów which began building the glider designs of ZASPL member Wacław Czerwiński. The second and third of these, the CW II and CW III, were both built there during 1929. Both were high wing, wooden, open frame gliders, though only the CW II had a nacelle enclosing the pilot’s cockpit.

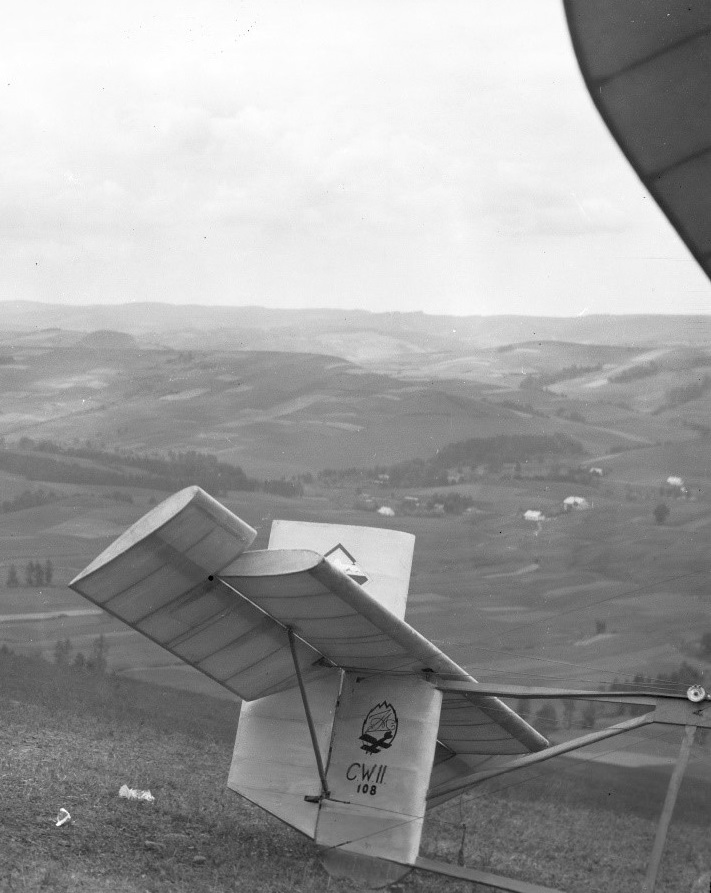

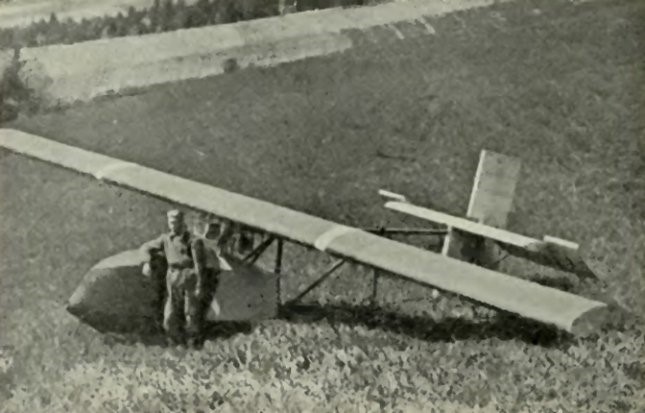

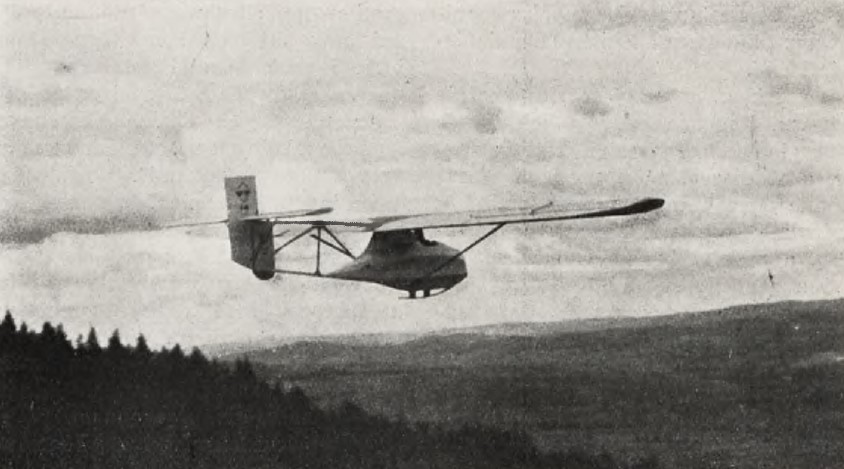

The CW II (also known as CW-02) had a rectangular plan, single spar wing, with plywood covering forward of the spar and aircraft fabric covering elsewhere, which was built in three parts, a half-span wide centre-section and two outer panels with trailing edges filled with ailerons. The centre-section was mounted just above the upper longeron, or chord, of the flat girder fuselage on four outward leaning inverted-V struts. Wire bracing from the lower longerons to the outer ends of the centre-section carried lift loads. The longerons were straight, parallel and cross-braced with alternate vertical and diagonal cross-members. The lower longeron extended forward of the wing and carried a plywood nacelle with an open cockpit; the nacelle extended rearwards under the wing. Under it, a wooden landing skid was mounted on rubber shock absorbers. The empennage was conventional, with fabric-covered rectangular surfaces. Its fin extended upwards from the lower longeron to just beyond the upper one, carrying the tailplane close above; a tall, balanced rudder operated in a cut-out between balanced elevators.

In 1929 Greszczyk made the first, brief flights of both the CW II and CW III, towed behind a car. In the autumn of 1929 they were taken to Bezmiechowa Górna for pilot training. Over fifty flights were made, chiefly on the better-handling CW III, but on 2 November Greszczyk set a new national gliding duration record of 2:11:4.5 hours in the CW II. In the following spring they returned to Bezmiechowa with some thirteen novices, including the first two female Polish glider pilots, Danuta Sikorzaanka and Wanda Olszewskz. The CW III was used as a basic trainer, with the CW II reserved for the more experienced.

In 1930 ZASPL began a short production run of the CW III (also known as CW-03), an improved version of the CW II also first flown in 1929, making it the first Polish glider to go into production. A few more were amateur built and overall as many as twenty were completed. The chief difference between it and the CW II was a new, two-part, rectangular plan wing with Gôttingen Gô 365 section. This had a lower aspect ratio of 5.9, with a reduced span but increased area. There was no nacelle, with the pilot exposed on a lowered seat. It proved easier to fly than the higher-performing CW II and well suited for its intended basic training role.

After successful operation between 1929 and 1931, the sole CW-II was considerably modified during the winter of 1931-2. It received a new, two part centre-section which was attached directly to the upper longeron and braced with a single strut on each side to the lower longeron. The wingtips were altered in plan from rectangular to curved, reducing the wing area by 3%, and the nacelle was better streamlined. These changes significantly improved the best glide ratio, though values given by various references differ.

From 1930 many Polish pilots learned to fly on the production CW IIIs, though these were soon joined and then supplanted by a 1931 CW II development, the simpler and cheaper CWJ. The last CW IIIs were withdrawn from service in 1938.

Variants:

CW II
Built in parallel with CW III, completed 1929. Open frame glider with pilot’s nacelle.

CW IIbis
CW II revised in 1931-2 with a reduced area wing which had a new, strut braced, two part centre-section and rounded tips. Better aerodynamics and performance.
Wingspan: 11 m (36 ft 1 in)
Wing area: 18.1 sq.m (195 sq ft)
Aspect ratio: 6.7
Airfoil: Gôttingen Gô 535
Length: 6.25 m (20 ft 6 in)
Height: 1.75 m (5 ft 9 in)
Empty weight: 120 kg (265 lb)
Gross weight: 195 kg (430 lb)
Stall speed: 38 km/h (24 mph, 21 kn) minimum speed
Maximum glide ratio: 13 at 47 km/h (29 mph; 25 kn)
Rate of sink: 0.95 m/s (187 ft/min) at 44 km/h (27 mph; 24 kn)
Crew: One

CW III
Built in parallel with CW II, completed 1929, it was similar to the Cw II but lighter, with no pilot’s nacelle, a different wing of lower aspect ratio and a different airfoil. It had lower performance than the CW II but was easier for novices to fly. Limited production from ZAPL and some amateur builds together provided about twenty airframes; it was the first Polish glider to reach production.
