The German VFW SG 1262 Schwebegestell (hover rig) was designed and built in 1965 by Vereinigte Flugtechnische Werke (VFW) as an experimental aircraft to assist with the development of several vertical takeoff and landing (VTOL) military aircraft types that included the VFW VAK 191B, the EWR VJ 101 and the Dornier Do 31 transport. The 1262 designation relates to the initial numbering of the VAK 191B project by Focke-Wulf.
As part of the development of the VFW-Fokker VAK 191B vertical take-off aircraft, it was necessary to configure and test the monitoring of its flight control system. In order to minimise costs and risks during the development of the 191B the SG 1262 rig was designed and built in 1966 to simulate essential functions. Of high importance was the necessity to test the fly-by-wire flight control system, a redundant flight controller and a self-diagnosis system. A total of approximately 650 hours of simulation time, 2,000 hours of test runs on system test benches and 6,900 hours of wind tunnel tests were documented during the design phase of the project.
The aircraft was based on a trapezoidal frame without any skin panels. Deviating from the vectored thrust engine concept of the VAK 191B, five Rolls-Royce RB.108 turbojet lift engines with 9 kN (2,000 lbf) thrust each were mounted vertically. In addition to extensive sensor equipment, the rig used an auxiliary gas turbine for autonomous electrical power supply supply, it was also fitted with a Martin-Baker ejection seat.
The aircraft was based on a trapezoidal frame without any skin panels. Deviating from the vectored thrust engine concept of the VAK 191B, five Rolls-Royce RB.108 turbojet lift engines with 9 kN (2,000 lbf) thrust each were mounted vertically. In addition to extensive sensor equipment, the rig used an auxiliary gas turbine for autonomous electrical power supply supply, it was also fitted with a Martin-Baker ejection seat.
The control commands were transmitted via an electrical control (fly-by-wire) system with mechanical feedback. The flight control system had triple redundancy and double electro-hydraulic servo units with integrated self-monitoring. The control commands for the three axes were accomplished with compressed air nozzles that were actuated by a 280 bar (4,000 psi) high-pressure hydraulic system, movement of the main engines for control purposes was deliberately omitted. A direct mechanical back up of the compressed air control system was provided for emergencies.
40 tethered flights were initially carried out using a fixed telescopic apparatus before the aircraft flew in free flight for the first time on 5 August 1966. 150 free flights were made during the 18-month test program, including a demonstration flight at the 1968 Hanover Air Show at Hanover-Langenhagen.
Despite the discontinuation of all German vertical take-off programs the findings from experiments with the SG 1262 and experience gained from the VAK 191B project were used by German engineers during the development of the Multi Role Combat Aircraft (MRCA) project which became the Panavia Tornado.
The SG 1262 is preserved and on display at the Bundeswehr Museum of German Defense Technology in Koblenz.
Powerplant: 5 × Rolls-Royce RB.108 turbojet, 9 kN (2,000 lbf) thrust each Gross weight: 3,900 kg (8,598 lb) Fuel capacity: 800 kg Maximum speed: 75 km/h (47 mph, 40 kn) Endurance: 12 minutes Service ceiling: 200 m (660 ft) Thrust/weight: 1.15 Crew: 1

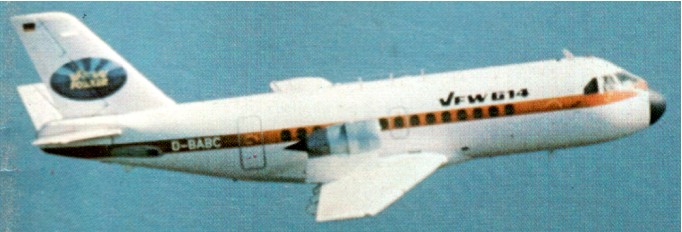

The VFW 614 twin-turbofan shorthaul transport was first flown in July 1971. German certification had been gained on 23 August 1974 and the first production aircraft had flown on 28 April 1975, but only 19 aircraft (including prototypes) were completed, and most ended up in storage at Bremen after very short working lives. Production was halted in 1978.
In 1960 VFW began research to develop a VTOL concept that exceeded the capabilities of current helicopters. More than a dozen different concepts were investigated, and the concept that evolved promising the best growth potential, productivity, speed, and cost effectiveness was the H3-E Compound Helicopter configuration.
The H3-E was built with a mission as a three-seat executive transport, two-stretcher ambulance aircraft, or an agricultural system with a payload of up to 315kg.
The design incorporated a compressed air and blade tip-drive rotor. The separate forward-thrust system consisted of fuselage-mounted fans.
The H3-E had a take-off weight of about 950kg and an empty weight of 500kg. The craft provided a payload weight of 265kg. The model had the capability of carrying a payload of almost 270kg with a fuel load of 205kg.
The completely enclosed fuselage was built around an aluminum alloy load-bearing keel which supported the cabin, landing gear, and engine bay structure, low-set tailboom with a V-tail, and a tricycle undercarriage. The cabin skin was fabricated of a glass-fiber reinforced plastic laminate.
The power unit was an Allison 400 shaft horsepower turbine engine which had a dual purpose. First, it was used to drive a centrifugal compressor in the hover mode. A duct delivered the compressed air through a flexible sleeve to the air distributor around the rotor shaft. Then, the high-pressure air traveled via flexible hose into the roots of the fully-articulated blades.
The overhead rotor consisted of a three-blade configuration and the blades used the NACA 23015 airfoil section. The speed range for the rotor varied from 280 to 480 revolutions per minute with a maximum loading of 15.7kg/sq.m.
When the air reached the end of each rotor, it was thrust through flush-mounted slot nozzles. A gearbox contained two bevel gears for the fans and a brake on the compressor shaft for switching the power to the compressor or to the fans. The mechanical layout of the system effectively eliminated the need for conventional transmission and driveshaft systems, hydraulic systems, and a tail rotor.
The technique to achieve near-vertical flight occurred when the rotor was slightly rotated in a standard helicopter style. With the increase in speed, the side-mounted fans were caused to free-wheel within their containing shrouds.
At a certain point in the trajectory, a decision that was made by the pilot, the transformation to full utilization of the fans could be made. Since the fans were already in a windmilling situation, the transition to full fan speed took only about two seconds to accomplish.
Hovering stability was mainly affected by blade hinge offset, blade pitch, angular velocity, disk loading, gross weight and mass moment of inertia of the aircraft,
Early in its program the H3-E underwent a number of test programs. An extensive blade fatigue test attempted to simulate the temperature and pressure cycles inside the blades. The test rig was fully automated, and every five minutes, the temperature and pressure increased and stabilized for 45 seconds before the blade vibrated.
The only two prototypes of the H3 were constructed in 1968. Before flight, though, there were considerable ground shake tests accomplished. A sophisticated test rig excited the rotor head with a constant force independent of frequency. Ground tests also showed that the vehicle had certain mechanical instabilities at high rotor speeds. The first of two prototype H-3s (H3-E1, D-9543) flew in early 1970 without the external fan propulsion units.
Engine: 1 x Allison 250-C20 turboshaft, 300kW Main rotor diameter: 8.70m Rotor disc area: 60 sq.m Length with rotors turning: 9.29m Max height: 2.5m Landing gear track: 2m Max take-off weight: 968kg Empty weight: 495kg Max speed: 300km/h Max cruising speed: 250km/h Normal cruising speed: 242 kph Max vertical rate of climb: 2m/s Service ceiling: 3900m Endurance: 2hr
The VAK concept of NATO and the German Armed Forces required an aircraft that was able to take off from unprepared airfields without runways. Its mission was close air support. In addition it had to be able to fly long distances in extreme-low-altitude in order to prevent attacks of antiaircraft weapons and radar detection. Because of this the VAK was designed with short wings and a minor extension so it would provide its pilots a tolerable flight and bear aerodynamically difficult extreme low altitude flights.
The first prototype flew on September 10, 1971, powered by one 10,150-lb (4604-kg) thrust Rolls-Royce/MTU RB.193 vectored-thrust turbojet and two 5577-lb (2530-kg) thrust RB.162 lift turbojets. It had small, vertically mounted jets in the front and rear of the fuselage for direct lift, plus a third engine of the vectored ¬thrust type for forward propulsion and transitions between horizontal and vertical flight. It uses “puffer jets” at the nose, tail and wingtips to stabilise it during low speed and hovering man¬oeuvres. In terms of design, it is intended for experimental work only. The first transition – the transfer of vertical flight in horizontal and vice versa as well as turning off and on the lift-engines – was achieved on October 26, 1972 in Manching, Bavaria, at a speed of 400 km/h. All three VAK 191B experimental aircraft completed a total of 91 flights that lasted all together 12 hours.
Despite successful flight trials it was not ordered into production as the Harriers of RAF Germany were already fulfilling the need for which the VAK-191B had been conceived.
VAK 191B Engines: 1 x Rolls-Royce/MTU RB 193-12, 45.2kN + 2 x Rolls-Royce RB 162-81 F 08, 26.5kN Max take-off weight: 8507 kg / 18755 lb Empty weight: 5562 kg / 12262 lb Wingspan: 6.16 m / 20 ft 3 in Length: 14.72 m / 48 ft 4 in Height: 4.30 m / 14 ft 1 in Wing area: 12.5 sq.m / 134.55 sq ft Max. speed: 1100 km/h / 684 mph Cruise speed: 740 km/h / 460 mph Range: 400 km / 249 miles Payload: 2945kg Crew: 1

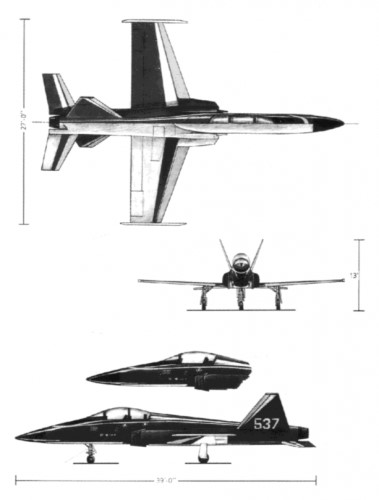

Revealed in June 1987, the Venga TG-10 is a privately financed composite-construction, single engined jet trainer/light attack aircraft with tandem seating. Funding difficulties slowed the programme significantly in late 1987. The first flight has consequently been rescheduled several times, and had not taken place by July 1989.
In September 1988 Venga announced a joint-venture agreement with a Malaysian partner who were to produce the TG-10 in Sabah State, East Malaysia. Royal Malaysian Air Force interest was claimed, although no orders had been placed by July 1989.
An all-composites airframe and modular construction are intended to give the TG-10 an estimated flying life of about 10000 hours, due to a considerable reduction in the corrosion and fatigue problems associated with aircraft of metal construction. Its configuration also incorporates low-observables design features intended to improve its survivability. It will be repairable in the field, using replacement major components and quick-change engine modules, and will be operable from roads, grass or unprepared airstrips, with mission capability not only for its primary role as an `all-through’ trainer but also, in single-seat form (with the rear cockpit module removed), as a light ground attack aircraft.
AIRFRAME: Construction utilises a modular, all-composites structure designed for ease of repair in the field, built from pressure formed foam core laminates bonded together into a single lightweight moulded unit. Materials used are layers of aircraft grade glassfibre cloth bonded to a core of PVC foam (Klegecel or Divinycell) in a vacuum process using various resin matrices. Primary structure built entirely of composites materials, with extensive use of carbonfibre for high stress and other critical areas, though use of carbonfibre reinforced aluminium alloy (eg for main spars) is a customer option.
WINGS: Cantilever low-wing monoplane, with 2o 30′ dihedral from roots. Trailing-edge flaps are operated electrically via Commercial Aircraft Products actuators. Differentially operating ailerons, each with trim tab.
FUSELAGE: Modular structure (see `Airframe’ paragraph), of similar general appearance to Northrop F-5E. Electro-hydraulically actuated airbrake beneath fuselage.
TAIL UNIT: Low-set, sweptback tailplane with slight anhedral. Twin non-swept, outward canted fins, with inset rudders, forward of horizontal surfaces. Trim tabs in elevator and each rudder.
LANDING GEAR: Retractable tricycle type, with electro-hydraulic actuation; nosewheel retracts forward, mainwheels inward into fuselage. Wheel sizes 5.00-5 (nose), 6.00-10 (main). Nosewheel steerable through 30o. Mainwheels have hydraulic brakes and parking brake.
POWER PLANT: Prototype powered by one 13.01 kN (2925 lb st) General Electric J85-GE-5 turbojet; standard engine for basic production version will be an 11.12 kN (2500 lb st) Pratt & Whitney Canada JT15D-4C turbofan, but customer options will include General Electric CJ610 or Rolls-Royce Viper 632 or 680 turbojets. Intakes are each fitted with a large splitter plate, and are designed to inhibit foreign object damage. Fuel system, designed to permit fully aerobatic manoeuvres, comprises three fuselage cells with total usable capacity of 1223 litres (323 US gallons; 269 Imp gallons). A 265 litre (70 US gallon; 58 Imp gallon) drop tank can be carried on the fuselage centreline station in the single-seat attack configuration.
ACCOMMODATION: Standard trainer has tandem accommodation for pupil (in front) and instructor on UPC zero/zero ejection seats under jettisonable bubble canopy, with internal screen between cockpits. Seats are reclined, adjustable horizontally and vertically, and can accommodate back-type parachutes. Dual controls standard, except for switches for fuel pumps, weapon control panel and parking brake; in lieu of these, rear panel has a full set of indicators for the weapons system, an override switch to prevent firing, and a parking brake indicator. Rail mounted rear seat and rear instrument panel module are easily removable to permit quick conversion to single-seat light attack configuration. Cockpit(s) fully air-conditioned, but not pressurised; latter may be offered later as a customer option.
SYSTEM: 28V DC electrical system, powered by a standard starter/generator and Gates Energy Products lead-acid battery, with second battery for emergency backup. Power sources are coupled to three busbars in front cockpit (main, avionics, and emergency) containing trip-free circuit breakers. NATO type external ground power socket. Normalair-Garrett diluter demand oxygen system, capacity 225 litres (8 cu ft).
AVIONICS AND EQUIPMENT: Avionics include two VHF com, intercom, VOR/ILS/marker beacon receiver (front), VOR/LOC nav (rear), ADF, transponder, and DME. Full IFR capability, with electrically driven gyro instruments; main directional gyro is a King slaved type unit. Provision for HUD, radar altimeter, nose radar or other avionics to customer’s requirements. Standard cockpit instrumentation and equipment includes ASI (two), VSI (two), encoding altimeter, standard altimeter, clock (two), horizon gyro (two), turn and slip indicator (two), accelerometer (two), angle of attack indicator, pictorial navigation indicator, magnetic compass (two), DME indicator (two), ADF information display (two), first aid kit, IFF transponder, fire extinguishing system, and internal/external lighting.
ARMAMENT: One centreline and four underwing hardpoints, each stressed for loads of up to 181.5 kg (400 lb), for weapons, fuel tank (centreline only), survival or rescue packs, or other stores, subject to a max external load of 845 kg (1864 lb) in single-seat attack version. Weapons specified at present include up to three Portsmouth Aviation 7.62 mm FN gun pods with 450 rds/gun; up to three HMP 0.50 in Browning gun pods with 250 rds/gun; two GIAT 20 mm M621 gun pods with 150 rds/gun; various rocket launchers (Matra F2 with six 68 mm, Aerea AL 18-50 with eighteen 2 in, AL 8-70 with eight 2.75 in FFAR, AL 6-80 with six 81 mm, LAU-32 with seven 2.75 in FFAR, SNIA 2 in, Brandt 7 with seven 68 mm, or SURA-D 81 mm); SAMP 32 kg or 50 kg general purpose or 120 kg fragmentation bombs; 11 kg Mk 76 practice bombs; or a 70 mm automatic panoramic IRLS reconnaissance pod.
Venga reports that it has received letters of interest from five countries, involving approximately 160 aircraft. Rollout of the TG-10 prototype was anticipated in the Summer of 1989, subject to funding availability, and recent joint venture arrangements are claimed to have ensured funding to completion at about that time.
The first prototype was to be assembled in Montreal, but the US Thunder group was responsible for the engineering design of the TG-19, and the moulds were manufactured at Scottsdale, Arizona.
Venga was a struggling company throughout the ’90s. When the Venga TG-10 prototype was burned, it had a drastic impact on them. This was their major project that had been presented to the world. There was a decent degree of interest, and they had even formed a partnership. All of this changed on that day in May of 1998.
Without an actual prototype, there was no reason for anyone to have even the slightest interest. This is especially true given the fact that there were many other aircraft available now for a comparable price.
Venga TG-10 Wing span: 8.23 m (27 ft 0 in) Wing area: 12.54 sq.m (135.0 sq ft) Wing chord at root: 2.29 m (7 ft 6 in) Wing aspect ratio: 5.4 Length overall: 11.89 m (39 ft 0 in) Fuselage Max width: 1.42 m (4 ft 8 in) Height overall: 4.04 m (13 ft 3 in) Tailplane span: 3.96 m (13 ft 0 in) Wheel track: 3.05 m (10 ft 0 in) Trailing-edge flaps (total): 1.30 sq.m (14.0 sq ft) Rudders (total, incl tabs): 1.11 sq.m (12.0 sq ft) Tailplane: 1.67 sq.m (18.0 sq ft) Elevators (total, incl tab): 1.67 sq.m (18.0 sq ft) (A: two-seat trainer, B: single-seat attack): Weight empty, equipped (incl unusable fuel): A: 1288 kg (2840 lb) B: 1047 kg (2308 lb) Max usable internal fuel: A, B: 908 kg (2002 lb) Max external stores load: A: 277 kg (610 lb) B: 845 kg (1864 lb) Max T-O weight: A: 2645 kg (5832 lb) B (without external stores): 2041 kg (4500 lb) B (with max external stores): 2886 kg (6364 lb) Performance: (estimated: prototype with J85 engine at 2645 kg; 5832 lb max T-O weight): Max level speed: at S/L, ISA: 485 knots (899 km/h; 558 mph) at 9150 m (30000 ft), ISA: 450 knots (834 km/h; 518 mph) Stalling speed: 78 knots (145 km/h; 90 mph) Max rate of climb at S/L, ISA: 2134 m (7000 ft)/min Time to 9150 m (30000 ft): 7 min 12 s T-O run at S/L, ISA: 186 m (610 ft) T-O to 15 m (50 ft) at S/L, ISA: 402 m (1320 ft) Ground turning radius, all wheels rolling: 6.10 m (20 ft 0 in) Max range: internal fuel only, 10% reserves: 950 nm (1760 km; 1094 miles) with c/l drop tank, no reserves: 1271 nm (2355 km; 1463 miles) Max endurance at 9150 m (30000 ft): 2 h 30 min
The UTAIS Ornithopter No.1, which “flew” in 2006 was designed by the University of Toronto. The light No.1 used a small motor to power its flapping wings. Realizing that a motor wasn’t enough to flap it off the ground, the designers also fitted the airplane with a jet engine booster to launch it into the air. The University claimed that most of the thrust was coming from the wings.
When the No.1 did its first test flight, it jumped off the runway for 14 seconds after the jet booster activated, traveled awkwardly for a third of a kilometer, nosed down, and crashed. The University claimed the test was a success.
Engine: 1 x GE T700-701C Instant pwr: 1342 kW MTOW: 4763 kg Max speed: 110 kts Max range: 467 km HOGE: 1100 ft Service ceiling: 13,600 ft Crew: 1 Pax: 14

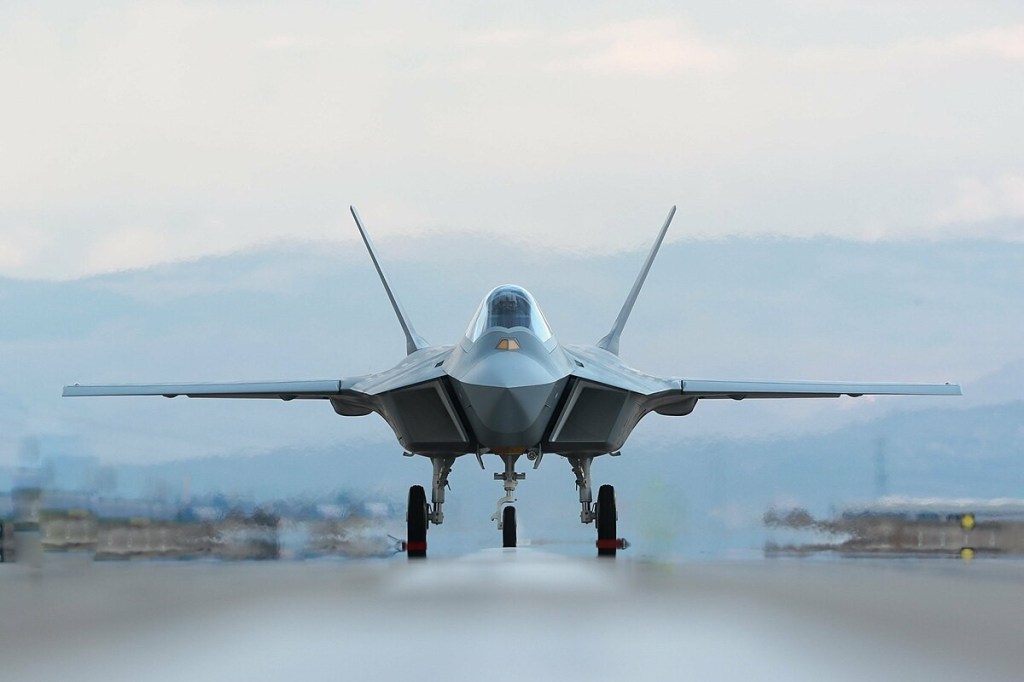

The Kaan program, initiated in 2016 with an investment of $1.18 billion, was designed to replace Türkiye’s aging F-16 fleet. Developed with international collaboration from partners such as BAE Systems and Rolls-Royce, the program prioritizes local production and technology ownership. The aircraft incorporates advanced design features, including supercruise capability and reduced radar cross-section, alongside a suite of indigenous munitions such as the Gökdoğan and Bozdoğan air-to-air missiles. The program emphasizes network-enabled warfare capabilities and interoperability with UAVs and other air force assets.
The Kaan, developed by Turkish Aerospace Industries (TAI), is a fifth-generation twin-engine stealth fighter designed for air superiority and multirole operations. It is equipped with advanced AESA radar capable of detecting targets over 100 kilometers away, internal weapon bays to reduce radar visibility, and a payload capacity of more than 6,000 kilograms. Initial models are powered by General Electric F110 engines, with plans to integrate domestically developed engines in later versions. The Kaan is designed to operate with other platforms in the Turkish Air Force, including the F-35A.
The TAI TF Kaan, a fifth-generation stealth fighter jet, achieved its maiden flight on February 21, 2024, with a second successful flight on May 6, 2024.
Engines: General Electric F110 Wingspan: 14 m Length: 21 m Height: 6 m Speed: Mach 1.8 Operating altitude: 55,000 ft Combat range: of approx 1,100 km
The Turbomeca Gabizo was a small turbojet engine produced by Turbomeca and first run in 1954. The components were designed to take the stresses of high-speed fighter aircraft with some variants featuring afterburner.
Applications: Fouga CM.171 Makalu Dassault Étendard II SNCASO Trident
Specifications: Gabizo Type: Turbojet Length: 86 in (218.4 cm) Diameter: 26.5 in (67.3 cm) Dry weight: 560 lb (254.0 kg) Compressor: Single stage axial plus single-stage centrifugal Combustors: Single annular combustion chamber Turbine: Single-stage Maximum thrust: 2,426 lbf (10.78 kN)(maximum thrust) 1,940 lbf (8.62 kN)(maximum continuous thrust) Overall pressure ratio: 5.1:1 Specific fuel consumption: 1.04 Thrust-to-weight ratio: 4.332 lbf/lb (0.042 kN/kg)
