The only Sikorsky XP2S-1 built, A8642 in 1932, was powered by tandem pusher/tractor engines in an interwing nacelle. The engines were two 400hp P&W R-985A or 550hp R-1340s.
Engines: two 400hp P&W R-985A
Wingspan: 56’0″
Length: 44’1″
Ceiling: 13,900′
Seat: 4

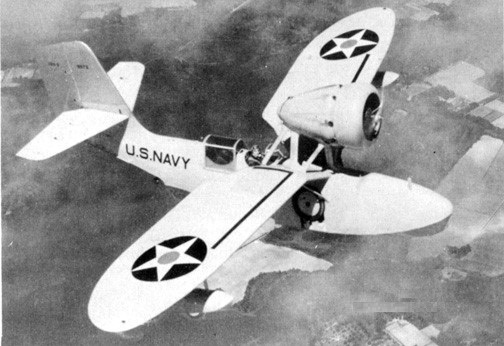

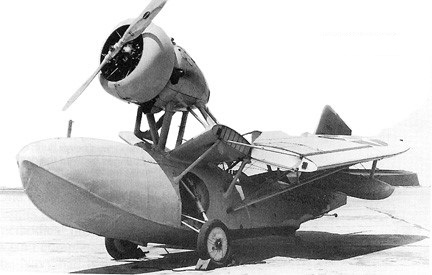

The 1933 Sikorsky SS (Model X1200) was a scout-observation experiment for carrier duty.
Only one was built, 8972, originally XSS-1, then modified as XSS-2.
Engine: 550hp P&W R-1340D
Wingspan: 42’0″
Length: 32’0″
Max speed: 159 mph
Ceiling: 22,600′
Seats: 2
The forerunner of an entirely new generation of production models, the S-62 was the company’s first amphibious helicopter, with a boat hull and powered by a single General Electric T58 turbine.
The Sikorsky S-62 was the first turbine-powered helicopter to be granted a type approval certificate by the U.S. Federal Aviation Agency, and was also the first type to pass new regulations introduced by the FAA to govern the operation of commercial passenger-carrying helicopters.
The design, drawn up in 1957-58, was based on using identical main and tail rotors and transmission systems, and other dynamic and mechanical features, of the proven piston-engined S-55. The fuselage was entirely new, being designed for fully amphibious operation with a flying-boat hull and main undercarriage wheels semi-retractable within the two outrigged stabilising floats. Power was provided by a single General Electric shaft turbine engine, mounted centrally above the main cabin and accommodation provided for a 2-man flight crew and 10 airline passengers or 12 troops.
Two S-62 prototypes were completed, with 1050shp T58-GE-6 engines derated to 670shp. The maiden flight on 22 May 1958, and subsequent world-wide demonstration flights, were made by N880, while N972 carried out trials for the FAA type certificate which was awarded on 30 June 1960; and a few days later the first production machine, designated S-62A, was delivered to a commercial customer.
Later S-62A’s have CT58-100 or -110 engines of 1250 (derated to 730) shp. The S-62B is essentially similar to the A model, but employs the rotor system of the Sikorsky S-58 with the main blades shortened by 0.33m. In
February 1962, after service trials with a modified S-62A, the U.S. Navy ordered four of these aircraft on 21 June 1962 as HU2S-1G’s (redesignated as HH52A’s on September 1962 before delivery) for the U.S. Coast Guard. Initial deliveries, under the designation HH-52A and named Seaguard, were made in January 1963. This version powered by a 932kW CT58-GE-8 engine was replaced by the HH-3 Pelican.
In all, ninety-nine were built; 1352 to 1379, 1382 to 1413, 1415 to 1429, 1439 to 1450, and 1455 to 1466.
The HH 52A can carry six litters and can hoist 600 pounds on a cable at¬tached to an electric winch with an explosive guillotine cutter. The engine is a GE turbine that generates 1,250 shaft horsepower, de¬-rated, on this Coast Guard version to only 830 shp by limiting the size of the fuel flow orifices.
HH-52s based at Houston, Texas, frequently practised recovery of the NASA Apollo astronauts. One US Coast Guard machine was used in the film Airport ’77.
Subsequent naval orders for the HH-52A had raised the total to eighty-four by mid-1968 and it has been in use since early 1963. The HH-52A has the T58-GE-8 engine, military version of the CT58-110, and automatic stabilisation equipment. Additional features for coastal search and rescue work include a fold-down rescue platform and boat-towing gear. A rescue hoist can be mounted above the starboard cabin door to lift a maximum load of 272kg, or the S-62A can lift a 1361kg slung load by means of an under-fuselage hook.
Originally designated S-62B, the 1958 S-63 was S-62 with S-58 rotor system,
The S-62C is the equivalent of the HH-52A for commercial and foreign military customers. Apart from the U.S. Coast Guard, which remains the largest user of the type, the biggest single operator of S-62’s is Petroleum Helicopters Inc, which has a fleet of six for work in support of offshore oil-drilling operations in the Gulf of Mexico. Of the forty-six S-62 type helicopters ordered, up to summer 1968, other than those of the USCG, nearly half were for customers in Japan, where Mitsubishi hold the licence. Nine examples were built under licence for service with Japanese Maritime Self- Defence Force (JMSDF).
By mid-1993, no military, and only a very small number of civilian, S-62s remain in use.
S-62A
Engine: 1 x General Electric CT58-110-1 turboshaft
Accommodation: 11 passengers
S-62C
Engine: 1 x General Electric CT-58-100-1 turboshaft, rated at 990kW
Main rotor diameter: 16.15m
Length with rotors turning: 18.86m
Fuselage length: 13.58m
Height: 4.33m
Width: 4.8m
Max take-off weight: 3630kg
Empty weight: 2248kg
Cruising speed: 163km/h
Rate of climb: 5.8m/s
Service ceiling: 3570m
Range: 743km
Crew: 2
Passengers: 10
S-62 / HU2S / HH-52A
Engine: General Electric T58-GE-8, 1250hp
Rotor: 53’0″
Length: 44’7″
Max speed: 175 mph
Cruise speed: 109 mph
Ceiling: 11,200 ft
Range: 412 mi
Passenger capacity: 10
The S-43 was originally designed for a Pan American requirement for a twin-engined amphibian for secondary Latin American routes.
Essentially a scaled-down version of the S-42, the S-43 employed a single-step hull and a single tail group. The wing rested on a central pylon, supported on either side by N-struts. Wing flaps covering 48% of the span reduced the stall speed to 65 mph.
The S-42 had twin vertical tails. Many of the S-43s had the same arrangement, but some had a single tail. Biggest difference other than size and the S-43’s amphibious capabilities (although some S-43s were built as flying boats) were the powerplants, only two 750hp Pratt & Whitney Hornets on the S-43. The smaller airplane had a gross weight of 19,5001b (8,845kg) and could seat 16 to 24, depending on the legroom. Both transports were certificated in 1935.
After the first flight on 5 June 1935 (piloted by Boris Sergievsky), the first of fourteen S-43s delivered to Pan American (ATC 593) entered Latin American service in April 1936, though most were subsequently turned over to Panair do Brasil and other subsidiary operations.
Sikorsky Aircraft built 53 S-43 twin engined amphibians in the mid 1930s.
In 1938 Pan American used one of its S-43s on survey flights for planned route extensions to Alaska.
Additionally, four were sold Inter-Islan Airways Airways (later renamed Hawaiian, Airlines) in the Hawaiian Islands, four to Aeromaritime – an Air France affiliate, in West Africa, KLM’s Netherlands East Indies associate, and one to DNL-Norwegian Airlines.
Twenty-two amphibians were delivered as S-43s (NC15061-15068, NC16925, NC16928, NC16934, and NC20698), plus one S-43-A and three S-43-Bs (NC16926-16927, and NC16931-16933) with minor detail changes.
Three delivered in 1937-8 for inter-island operations in the Phillipines were registered as S-43-W’s (ATC 623) with a one-foot fuselage extension and Cyclone engines, plus one as the S-43-WB witthout amphibious landing gear (NC16929-16930, and PK-AFT, PK-AFU). Two S-43s were custom built in 1937 as personal transports, one to Howard Hughes and another to Harold Vanderbuilt.
One ‘Baby Clipper’ was ordered in 1937 by Howard Hughes especially equipped for a proposed 1938 around the world flight. Registered NR440, it was fitted with larger 900hp Wright GR-1820 Cyclone radials and additional fuel tanks in the cabin. However, it proved too slow and Hughes made his flight in a Lockheed 14.
Hughes had a mishap with his S-43H, modified with twin tails in 1941, flying NC440 into Lake Mead, Nevada, in May 1943 while practicing alightings in preparation for flying the HK4 Hercules flying boat. Raised by a US Navy diving team, the airplane was rebuilt as a S-43W with a single tail, fitted out as a ten-seat executive transport. Manufacturer’s serial number 4327 served only briefly in this capacity and spent most of its time in storage at Hughes Tool Co in Houston TX until 1977.
Ronald Van Kregten, an acquaintance of both Hughes and lgor Sikorsky, purchased the S-43 from the Hughes estate in 1977 and restored it essentially to its executive configuration, obtaining certification. The airplane was based at Houston. Van Kregten planned to flying it occasionally to air shows.
Between 1937 and 1939 the Navy acquired seventeen S-43s that entered service under the designation JSR-1 (0504-0506, 1054-1063, and 1191-1194), two being assigned to the Marine Corp.
During the same time, five were delivered to the US Army Air Corp as the Y10A-8, 37-370 to -374, and in 1942, a commercial S-43, after being re-equipped with 875 hp R-1690-S2C engines, was impressed into the USAAF as OA-11 serial 42-01 VIP transport.
Military craft remained in service throught World War II. One S-43 was sold to the Soviet Union and several ex-Pan American examples were used in Brazil along the rubber river routes. Reeve Aleution Airways acquired an S-43 which it operated in Alaska and Catalina Island until the early 1960s.
One (a JRS) was in storage at the National Air & Space Museum’s facility at Silver Hill, Maryland.
S-43
Engine: 2 x 750hp Pratt-Whitney R-1680-52 Hornet
Props: 3 blade variable pitch, metal
Wingspan: 26.21 m / 86 ft 0 in
Length: 15.60 m / 51 ft 2 in
Height: 5.38 m / 18 ft 8 in
Wing area: 781 sq.ft
Empty weight: 12,750 lb
Max take-off weight: 8662 kg / 19097 lb
Max. speed: 306 km/h / 190 mph
Cruise speed: 167 mph
Ceiling: 6310 m / 20700 ft
Range: 1247 km / 775 miles
Crew: 3-4
Passengers: 15
S-43
Engine: two 750hp P&W Hornet
Wingspan: 86’0″
Length: 51’2″
Useful load: 6750 lb
Max speed: 194 mph
Cruise: 167 mph
Stall: 65 mph
Range: 775 mi
Ceiling: 17,500′
Passengers: 16-25
S-43-A
Engine: two 750hp P&W Hornet
Wingspan: 86’0″
Length: 51’2″
Useful load: 6750 lb
Max speed: 194 mph
Cruise: 167 mph
Stall: 65 mph
Range: 775 mi
Ceiling: 17,500′
Passengers: 16-25
S-43-B
Engine: two 750hp P&W Hornet
Wingspan: 86’0″
Length: 51’2″
Useful load: 6750 lb
Max speed: 194 mph
Cruise: 167 mph
Stall: 65 mph
Range: 775 mi
Ceiling: 17,500′
Passengers: 16-25
S-43-H
Engine: two 750hp P&W Hornet
Wingspan: 86’0″
Length: 51’2″
Useful load: 6750 lb
Max speed: 194 mph
Cruise: 167 mph
Stall: 65 mph
Range: 775 mi
Ceiling: 17,500′
Passengers: 16-25
S-43-W
Engines: two 760hp Wright Cyclone
Wingspan: 86’0″
Length: 52’3″
Useful load: 6040 lb
Max speed: 186 mph
Cruise: 177 mph
Stall: 65 mph
Range: 775 mi
Passengers: 19-25
S-4-WB
Engines: two 760hp Wright Cyclone
Wingspan: 86’0″
Length: 52’3″
Useful load: 6040 lb
Max speed: 186 mph
Cruise: 177 mph
Stall: 65 mph
Range: 775 mi
Passengers: 19-25
JRS-1
Engines: 2 x P&W R-1690-23, 750 hp
Wingspan: 86’0″
Length: 52’1″
Max speed: 185 mph
Ceiling: 20,700′
Seats: 2-12
First flown on 29 March 1934, the S-42 was a large 36-passenger commercial flying-boat powered by four 559kW Pratt & Whitney Hornet engines. It differed from earlier Sikorsky flying-boats in having a two-step hull with a long stern which supported the tail unit directly. Full use was made of a hydraulically controlled wing flap which extended across the straight portion of the wing. Within a brief period of time the S-42 had established ten altitude-with-load world records.
Ten S-42s were delivered to Pan American Airways at a price of $197,892, the last three as S-42Bs with increased wing span (from 34.8m) and loaded weight and incorporating refinements in fairing and hull design.
The clipper-type flying boat established a new world load-carrying altitude record in lifting a 16,608 lb load to over 16,000 ft on 26 April 1934 (the mark to beat was 6,561′) piloted by Boris Sergievsky and Raymond Quick, then increasing this record to 20,407′ less than a month later.
Three 1934 S-42 Clipper (ATC 544) with four passenger compartments were delivered to PAA as Clippers, NC822M to 824M.
The last S-42-B, the Pan American ‘Clipper III’, was delivered in mid-1937.
Four S-42-A, NC15373 to 15376, and three S-42-B, NC16734 to 16736, all went to PAA as Clippers in 1935 (ATC 592).
Pan American Airways appreciated the financial poten¬tial of a service across the vast expanse of the Pacific Ocean and ordered two different flying boats; the Martin M.130 and Sikorsky S 42. It was an aircraft of this latter type which carried out the first survey flight from America to New Zealand, while to the Martin M. 130 China Clipper went the honour of the first mail flight across the central Pacific. The original S-42 was used in survey flights across the Pacific in 1935 by Pan American Airways.
The Sikorsky S42B “Pan American Clipper II” surveyed the route from San Francisco to New Zealand, via Honolulu and arrived in Auckland in March 1937. Just under a year later another S42B inaugu¬rated a passenger service, only to explode in midair near Samoa on the homeward journey. PAA suspended their San Fran¬cisco Auckland service.
In 1937 a S-42B was used on the inaugural and scheduled mail and passenger service between New York and Bermuda, the latter shared with Imperial Airways and begun on 16 June 1937. At about the same time the final S-42B delivered to PAA (named Clipper III) made three survey flights across the Atlantic by way of Newfoundland and Foynes.
By the summer of 1937 Pan American began transpacific and transatlantic service with the first “Clipper III” the last of the Sikorsky series.
The four surviving examples continued in airline service until early 1946 and were scrapped soon afterwards.
S-42
Engines: 4 x Pratt & Whitney S-5-D 1G Hornet, 700hp / 515kW
Wing span: 114 ft 2 in (34.8 m)
Length: 67 ft 8 in (20.93 m)
Height: 17 ft 4 in (5.28 m)
Wing area: 123.5 sq.m / 1329.34 sq ft
Empty weight: 3965 kg / 8741 lb
Max TO wt: 38,000 lb (17,250 kg)
Max level speed: 182 mph (291 kph)
Cruise speed: 255 km/h / 158 mph
Ceiling: 4877 m / 16000 ft
Range w/max.fuel: 1930 km / 1199 miles
Crew: 4
Passengers: 32-37
S-42-A
Engines: four 750hp P&W Hornet
Wingspan: 118’2″
Length: 68’0″
Useful load: 16,800 lb
Max speed: 188 mph
Cruise: 165 mph
Stall: 65 mph
Range: 1930 mi
Ceiling: 16,000 ft
Passengers: 37
S-42- B
Engines: four 750hp P&W Hornet
Wingspan: 118’2″
Length: 68’0″
Useful load: 16,800 lb
Max speed: 188 mph
Cruise: 165 mph
Stall: 65 mph
Range: 1930 mi
Ceiling: 16,000 ft
Passengers: 37
The Sikorsky S-41 was a fifteen-passenger development of the S-38 powered by two 428kW Pratt & Whitney Hornet engines.
Six 1931 S-41-A were built (ATC 418) priced at $62,500.
Two were converted to S-41-Bs (NC41V and NC60V) with modifications as 13 passengers under ATC2-286.
One, NC784Y, was converted to the S-41-C.
Also used in small numbers by the US Navy as RS-1. Three were purchased by USN in 1930 for evaluation as A8842 to 8844. Two 1930 XPS-2 (A8089 and 8090) were redesignated XRS-2.
Two S-41 were impressed from Pan American as RS-5 (37852 and 37853)
S-41-A, -B, -C
Engines: 2 x 575hp P&W Hornet B
Wingspan: 78’9″
Length: 45’2″
Useful load: 5700 lb
Max speed: 133 mph
Cruise: 115 mph
Stall: 66 mph
Range: 575-900 mi
Ceiling: 13,500′
RS-1
Wingspan: 78’9″
Length: 45’2″
Speed: 131 mph
On December 20, 1929, Pan American awarded a contract to build three aircraft as the S-40, with deliveries starting mid-1931. The S-40 featured four engines and a two-step all metal hull, divided into seven watertight compartments, twin-boom, twin-tail and parasol wing. Almost sixty feet in length, accommodation was provided for up to thirty-two passengers and the added luxury of a smoking room with three chairs. Sikorsky selected a monoplane wing with stabalising floats mounted on outrigger booms. When built the Sikorsky S-40 was the largest amphibian in the world.
First flying on 31 August 1931, piloted by Boris Sergievsky and S Gluhareff, flight testing of the S-40 began in early 1931, and it was delivered to Pan American the following October, as soon as the ATC certificate was granted (ATC 454).
The seaplane version had an 11,000 lb load and slightly higher speed.
Selling for $139,000, named “American Clipper” and piloted by Charles A. Lindbergh, the first S-40 inaugurated the Miami-Canal Zone route on 19 November 1931. “American Clipper” pioneered Pan American World Airways mail and passenger routes around the Caribbean and to South America. It was joined by the second, ‘Caribbean Clipper’, later the same year, then by the the third, ‘Southern Clipper’, in early 1932.
The three S-40s (NC80V, NC81V, and NC752V c/ns 2000 to 2002) established regular airline service between the US east coast and South American destinations such as Rio de Janerio and Buenos Aires, operated without their amphibious gear to improve range as needed. The S-40 carried 40 passengers over distances of 500 mi. at speeds up to 115 mph.
During 1935, after all three had their engines upgraded to super-charged 660hp P&W Hornets, their designation was changed to S-40-A (ATC 562). By the end of 1939 the S-40As had been withdrawn from Pan American service. Caribbean Clipper later served with the Navy as a navigational trainer and is said to have amassed a total of 13,000 flying hours before being scrapped in 1944.
S-40
Engines: 4 x Pratt & Whitney R-1690 Hornet B, 575hp / 425kW
Wingspan: 34.8 m / 114 ft 2 in
Wing area: 174.0 sq.m / 1872.92 sq ft
Length: 23.4 m / 77 ft 9 in
Height: 7.3 m / 24 ft 11 in
Hull length: 48’0″
Max take-off weight: 15400 kg / 33951 lb
Useful load: 9252 lb
Max. speed: 210 km/h / 130 mph
Cruise speed: 185 km/h / 115 mph
Stall: 65 mph
Ceiling: 5550 m / 18200 ft
Range w/max.fuel: 925 km / 575 miles
Crew: 4
Passengers: 40
S-40-A
Engines: 4 x Pratt & Whitney R-1690-44 Hornet, 600 hp
Prop: 2 blade, ground adjustable, metal
Wingspan: 154 ft 0 in
Wing area: 1740 sq.ft
Length: 76 ft 8 in
Max speed: 140 mph
Cruise: 120 mph
Stall: 65 mph
Ceiling: 13,000 ft
Range: 900 miles
Empty weight: 21,000 lb
MTOW: 34,000 lb
Useful load: 10,813 lb
Sikorsky downsized the basic S-38 design to create the S-39. The original prototype, NX813M / NX963M, was experimentally converted to two tractor-mounted 115hp Cirrus Hermes Mk I engines, was test flown in mid-1929 but crashed later that year after an engine failure.
Sikorsky followed with the S-39-A, flown in early 1930, with a single R-985 Wasp Junior engine mounted directly to the wing. The S-39-A was the first US aircraft to be certified with the R-985.
Twelve S-39-As (NC42V, NC802Y, NC803W/809W, NC887W), marketed at an average price of US$17,500 with ATC 340, were sold to civil owners by the end of 1930.
The S-39-B (ATC 375), introduced in 1931 with a larger fin and rudder, sold eight examples (NC50V and 51V, NC53V to 55V, NC58V, NC888W, and NC896W) to private owners at $20,000, plus one to the US Army Air Corps as the YIC-28 32-411, plus 9 conversions from S-39-A.
Two S-39-B, refitted with 400 hp R-1340 Wasp engines, were re-certified as S-39-C.
The final example, an S-39-CS Special named “Spirit of Africa”, was built in 1932 to an order from explorers and photographers Martin and Osa Johnson. In a giraffe paint scheme, the Spirit of Africa covered more than 60,000 miles across Africa and East Indies.
Several civilian S-39s were operated by the Civil Air Patrol during World War II on search and rescue missions.
A total of 21 were built.
S-39 / S-39-A
Engine: Pratt & Whitney R-985 Wasp Junior, 300 hp
Prop: 2 blade, ground adjustable, metal
Wingspan: 52 ft 0 in
Length: 38 ft 11 in
Wing area: 320 sq.ft
Empty weight: 2678 lb
MTOW: 4000 lb
Max speed: 115 mph
Cruise: 97 mph
Ceiling: 18,000 ft
Range: 375 miles
Seats: 4
S-39B
Engine: Pratt & Whitney R-985 Wasp Junior, 300 hp
Prop: 2 blade, ground adjustable, metal
Wingspan: 52 ft 0 in
Length: 38 ft 11 in
Wing area: 320 sq.ft
Seats: 5
The S-38 was a nine-seat commercial amphibian powered by two 313kW Pratt & Whitney Wasp radial engines. A sesquiplane wing arrangement was employed and the tail unit was carried on two outriggers running aft from the main wing and braced to the heel of the hull by two struts. It was a successful design and many were built for airline use (including Pan American Airways, entering service in October 1938), private use and for the US Navy/USAAC. The type also set several world records for speed and altitude with specific loads. Over 100 were built from 1928 on.
By 1929 the company, having become a division of United Aircraft Corporation, occupied a large modern plant at Bridgeport, Connecticut, and was producing S-38 twin-engined amphibians. A ten-place prototype was built, NC5933, and eleven S-38A were built; NC8000, NC8005, NC8019 to NC8022, and NC8043 to NC8044, with ATC60.
One special luxury model was built as a personal transport for John H Whitney; NC8005.
The S-38-AH of 1928 (ATC 2-36) was powered by 525hp P&W Hornet A.
A single 12-place S-38A was procured by the USAAC in 1929 for evaluation as XC-6 29-406, also as Wright Field s/n XP-588. Eventually the aircraft, which had a length of 41’0″, was used as a VIP aircraft.
The XC-6 was followed by 10 C-6A production aircraft (30-397 – 30-406), used mainly for transport duties and target towing.
Two S-38A were impressed from Pan American (37854 and 37855) as RS-4.
Two went to the USN as XPS-2.
First flying on 13 March 1928, the 2-10 place S-38-B (ATC 126, 2-74) was priced from $50,000+. Seventy-sic were built; NC1V to NC3V, NC5V, NC7V, NC11V, NC15V, NC18V to NC21V, NC23V, NC25V, NC40V, NC73K to NC75K, NC113M, NC141M to NC146M, NC158H to NC160H, NC196H to NC199H, NC300N to NC304N, NC306N to NC309N, NC943M to NC946M, NC9105 to NC9107, NC9137 to NC9140, NC9143 to NC9144, NC9151, NC9753, NC9775 to NC9776, of which NC9140 was another -38-B Special with two 450hp P&W Wasp C under (2-74), but crashed before its delivery to Colombia.
1929 S-38-B Special NC9143 and NC9144 (ATC 2-68, 2-69) were S-38-A approved for eleven-place with 450hp P&W Wasp C engines and four-place with Wasp SC, NC9137.
Two S-38-B, NC25V and NC40V (DoC records show as NC16V c/n 314-20 and NC17V c/n 414-8), were converted to S-38-BH in 1929 with ATC2-190 (superseded by ATC356). They sold for $53,000.
The 1932 S-38-BL NC24V c/n 414-15 was a modified S-38-B.
The 1932 S-38-BS NC29V c/n 414-20 (ATC2-434) was a seven-place with two 450hp Wasp SC engines. It was built for a 1933 African wildlife survey, flown by pilot Osa and photographer Martin Johnson, with a “Zebra” paint job.
The 1933 S-38-BT NC22V c/n 414-23 (ATC 2-446) was an 8-10 place with two 525hp P&W supercharged Wasp T engines.
Selling for around $50,000, ten 1929 S-38-C (ATC 158) were built; NC4V, NC6V, NC10V, NC26V, NC28V, NC111M and NC112M, NC160H, NC199H, and NC305N. By now, 111 S-38 had been built.
Two S-39-B (NC809W and NC1933/NC14326) were refitted with 400hp P&W Wasp S1 engines in 1931 as S-39-C in 1931. They received ATC 2-391 and 2-436,
The 1932 S-39-CS Special (ATC 2-436) was a four-place with 375hp P&W Wasp S2 engines. The one built, NC52V c/n 914, was for Osa and Martin Johnson.
S-38-A, -B, -C (ATC 60)
Engines: 2 x Pratt & Whitney Wasp, 313kW / 400hp
Wingspan upper: 21.8 m / 72 ft 6 in
Wingspan lower: 11.0 m / 36 ft 1 in
Length: 12.3 m / 40 ft 4 in
Height: 4.4 m / 14 ft 5 in
Wing area: 66.9 sq.m / 720.10 sq ft
Max take-off weight: 4753 kg / 10479 lb
Empty weight: 2970 kg / 6548 lb
Max. speed: 200 km/h / 124 mph
Cruise speed: 175 km/h / 109 mph
Stall: 57 mph
Ceiling: 5480 m / 18000 ft
ROC: 1000 fpm
Range w/max.fuel: 965 km / 600 miles
Crew: 2
Passengers: 10
S-38-AH
Engines: 2 x 525hp P&W Hornet A.
S-38-B
Engines: 2 x P&W Wasp, 410hp
Wingspan: 71’8″
Length: 40’5″
Useful load: 3930 lb
Max speed: 125 mph
Cruise: 110 mph
Stall: 55 mph
Range: 750 mph
Ceiling: 18,000′
Seats: 2-10
S-38-B Special
Engines: 2 x P&W Wasp C, 450hp or Wasp SC
Seats: 11 or 4
S-38-BH
Engines: 2 x P&W Hornet B, 575hp
Useful load: 3580 lb
Max speed: 143 mph
Cruise: 120 mph
Stall: 55 mph
Range: 600 mi
Seats: 10
S-38-BS
Engines: 2 x P&W Wasp SC, 450hp
Seats: 7
S-38-BT
Engines: 2 x P&W supercharged Wasp T, 525hp
Seats: 8-10
S-38-C
Engines: 2 x P&W Wasp, 420hp
Wingspan: (upper) 71’8″
Wingspan: (lower) 36’0″
Length: 40’3″
Useful load: 3630 lb
Max speed: 125 mph
Cruise: 110 mph
Stall: 55 mph
Range: 600 mi
Ceiling: 18,200′
Seats: 8-12
S-39-B convert. S-39-C
Engines: 2 x 400hp P&W Wasp S1
C-6 / C-6A
Engines: 2 x P&W R-1340-7
Wingspan: 71’6″
Length: 40’3″
Max speed: 112 mph
Seats: 12
Despite the S-35 tragedy, Capt. Rene Fonck decided to try again, in a new Sikorsky aircraft, the S-37 NX1283 Ville de Paris. Powered by two 500hp Jupiters, it cruised at 190km/h and had a designed range of over 6400km, which would have taken it to Paris with fuel to spare.
Tests at progressively increased loads included the overload weight needed for the transatlantic flight, but the planned attempt was abandoned after the Orteig prize had been won by Charles Lindbergh.
The S-37 was sold by Fonck’s sponsors to American International Airways of Argentina as the Southern Star airliner for twenty passengers. During its delivery flight, begun on 30 June 1929, it became the first commercial transport to cross the 5700m Andes mountains, carrying eight people and a total useful load of 2300kg. Further flights over the Andes, between Buenos Aires and Santiago, became routine for several years.
First selling for $15,955, R1283 was modified as a sixteen passenger with 525hp P&W Hornet engines (the Jupiters went to S-37-B) for service in South America. It was scrapped by PAA in 1930.
The 1927 S-37-2 NX3698 (ATC 2-170) was built under a contract from Consolidated Co as their Model 12, for Army evaluation as five-place XP-496 bomber with two 525hp P&W R-1690 engines.
Sikorsky amended the suffix to “-B,” but while in the service it never did get an official Army designation.
It did not meet Consolidated’s requirements, either, and was rebuilt in 1929 by Sikorsky from eight passenger to 21 passenger transport with two 675hp P&W Hornets, which were replaced by the Jupiters from the S-37-1.
Rebuilt again and re-registered in 1934 as NR942M, it crashed at sea in 1934.
S-37-1 Guardian
Engines: 2 x Gnôme-Rhône Jupiter, 520hp
Wingspan upper: 100’0″
Wingspan lower: 58’0″
Length: 44’0″
Useful load: 7000 lb
Max speed: 135 mph
Cruise: 115 mph
Stall: 57 mph
Capacity: 20 pax
S-37-2 / S-37-B / Model 12
Engines: 2 x P&W Wasp, 500hp
Wingspan upper: 100’0″
Wingspan lower: 58’0″
Length: 45’6″
Useful load: 7000 lb
Max speed: 140 mph
Cruise: 120 mph
Stall: 53 mph
Ceiling: 15,000′
Capacity: 8 pax
S-37-2 / S-37-B / XP-496
Engines: 2 x P&W R-1690 Wasp, 525hp
Useful load: 6315 lb
Max speed: 108 mph
Stall: 57 mph
Range: 575 mi
S-37-B
Engines: 2 x P&W Hornets, 675hp
Capacity: 21 pax
All Aero
