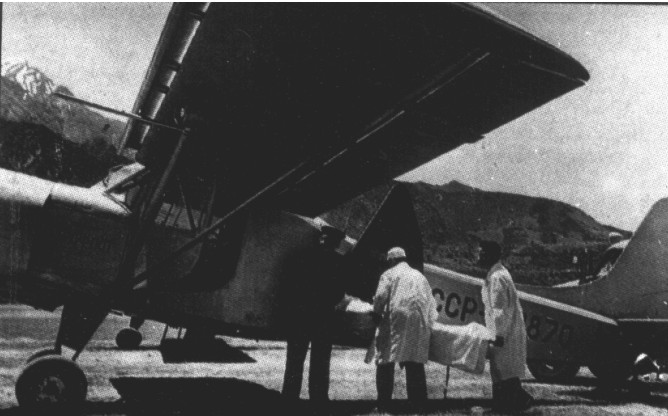

A high-winged, single-engined monoplane used by Aeroflot as a utility aircraft and air ambulance. NATO code name ‘Creek’.

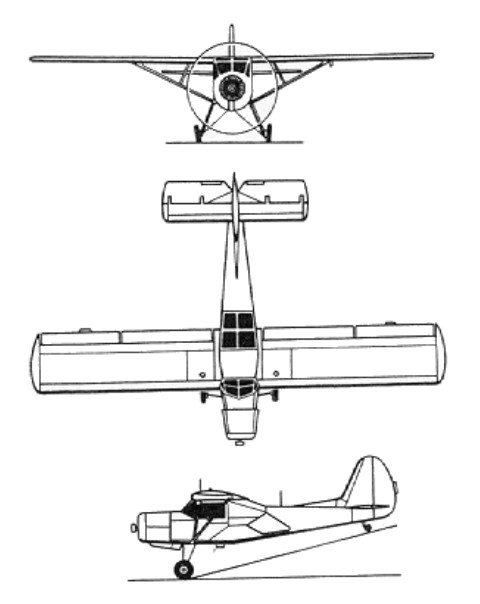

The Yak-12 was a single 179kW AI-14R-engined high-wing light general-purpose aircraft built in several versions from the late 1940s. It was known to NATO as Creek.

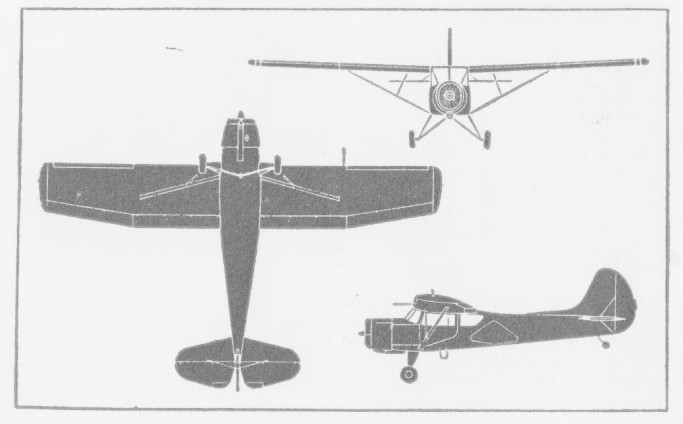

The Yak-12A four-seater presented a complete re-design of the basic aircraft, providing greater payload and range. Apart from additional windows, the fuselage remained unchanged, but entirely new wings of reduced area with taper on the trailing edges of the outboard panels was introduced. Single bracing struts replaced the earlier Vee-type struts, along with re-designed tail surfaces. Fuel capacity was substantially increased. Appearing in 1957, Yak-12A manufacturing was sold to Poland, the first Polish production model flying in August 1959 and production continuing until 1961.
In 1952 the Yak-12R (Creek-B) appeared. This retained the mixed construction of the original but introduced the 240 hp Ivchenko AI-14R radial.

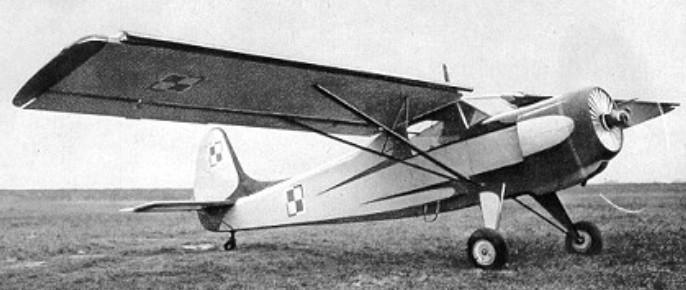

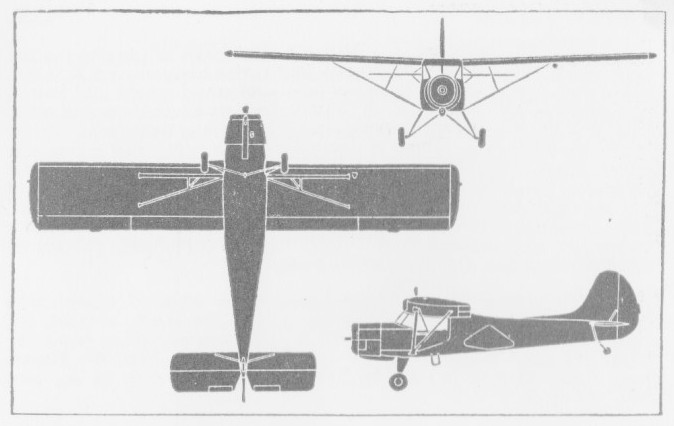

The Yak-12R was superseded in production by the Yak-12M (Creek-C) which employed an all metal structure with fabric covering. In 1955 a manufacturing licence for the Yak-12M was acquired by Poland, the type entering production at Okecie in 1955
The Shanghai Dragon Volant – 1 version was built in Shanghai, China.
The Chinese Chan Yang 1 version of the Yak-12 featured a 220 hp engine.
Yak-12
Engine: 1 x AI-14R, 190kW
Max take-off weight: 1435 kg / 3164 lb
Empty weight: 1014 kg / 2235 lb
Wingspan: 12.6 m / 41 ft 4 in
Length: 9.0 m / 30 ft 6 in
Height: 3.1 m / 10 ft 2 in
Wing area: 2.9 sq.m / 31.22 sq ft
Max. speed: 220 km/h / 137 mph
Cruise speed: 160 km/h / 99 mph
Ceiling: 4600 m / 15100 ft
Range w/max.fuel: 760 km / 472 miles
Crew: 1
Passengers: 1
Yak-12A
Engine: 240 hp Ivchenko AI-14R
Wingspan: 31 ft 4 in
Length: 29 ft 6 in
Height: 10 ft 3 in
Wing area: 233.264 sq.ft
Empty weight: 2330 lb
Loaded weight: 3494 lb
Max speed: 133 mph
Max cruise: 112 mph
Econ cruise: 96 mph
ROC: 709 fpm
Service ceiling: 15,090 ft
Range: 688 mi
Yak-12M
Engine: 240 hp Ivchenko AI-14R
Wingspan: 41 ft 4 in
Length: 29 ft 6 in
Height: 10 ft 3 in
Wing area: 233.264 sq.ft
Empty weight: 2263 lb
Loaded weight: 3197 lb
Max speed: 112 mph
Max cruise: 102 mph
Econ cruise: 79 mph
ROC: 805 fpm
Service ceiling: 13,650 ft
Range: 475 mi
Yak-12R
Engine: 240 hp Ivchenko AI-14R
Wingspan: 41 ft 4 in
Length: 29 ft 6 in
Height: 10 ft 3 in
Wing area: 233.264 sq.ft
Empty weight: 2204 lb
Loaded weight: 3494 lb
Max speed: 114 mph
Max cruise: 99 mph
Econ cruise: 80 mph
Service ceiling: 13,120 ft
Range: 310 mi
