Construction is by War Aircraft Replicas, whose aim is to build scaled down versions of fighters for use as sport aircraft, instead of aerobatic sport aircraft which look like fighters.

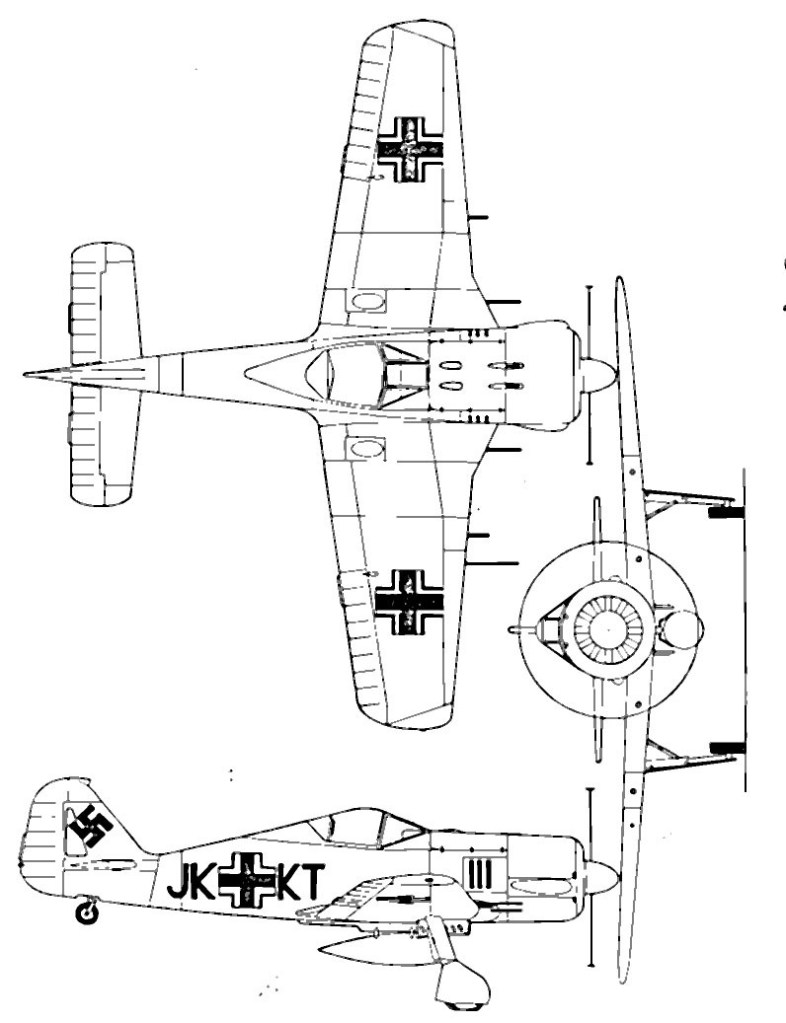

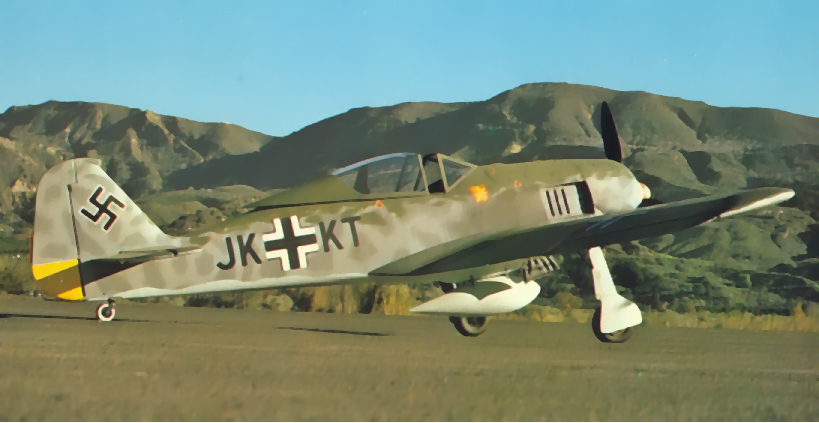

WAR Aircraft Replicas is a company formed to market kits and plans for 1/2-scale World War II aircraft replicas. The Focke-Wulf 190 was singled out to be the first prototype, and development started in 1973. The first flight was made on 21 August 1974 with a 70hp VW engine. Other versions to be certified are the F4U Corsair and the P-47 Thunderbolt. All use the same common wooden fuselage box and wing spar construction. In order to duplicate the various fighter aircraft, polyurethane foam is shaped and covered with high-strength laminating fabric and epoxy resin to form a rigid, yet lightweight structure. Landing gear are electrically-retractable tailwheel type with an emergency system. Power is supplied by a 0-200 Continental turning a three-blade, fixed-pitch prop.
Plans 2005: US$245
Features fully retractable landing gear, sliding canopy, and detachable wings.
Engine: Continental O-200, Lycoming 0-290-D, HCI 7 cylinder Radial
Prop: 60″dia 3 or 4 blade ground adjustable
Wingspan: 20’0″
Wing area: 70 sq.ft
Wing section root: 23015 54 in
Wing section mid: 23014 46 in
Wing section tip: 23012 31 in
2 degree twist
Length: 16’7″
Tread: 6 ft 8 in
Empty Weight: 600-620 lbs
Max Gross Weight: 900-920 lbs
Fuel capacity 15 USG
Wing Loading: 12lbs/sq ft
Cruise: 135 MPH @3.2 GPH
Vne: 195 mph
Max level speed: 165 MPH
Stall Speed: 55 MPH
Approach & Pattern Speed: 70-75 MPH
Take off Run: 800-1000 ft
Rate of Climb: 700 ft/min.
Endurance: 3-4 Hrs: 400 miles
Structural capability Aerobatic (+/- 6 g’s)
Landing roll 1200 ft
Seats: 1
LSA: yes
