WACO delivered 83 UICs before replacing the model with the UKC/YKC/CJC series of standard cabin aircraft in 1934. These trendy airplanes became a favourite of aviators like Jacqueline Cochran and corporate magnates such as Henry Dupont.

Forty 1934 UKC (ATC 528) were built selling for $6,285, redesignated UKC-S Standard in 1935, and UKS-6 in 1936.

60 YKC built, 22 YKC-S built.

Gallery

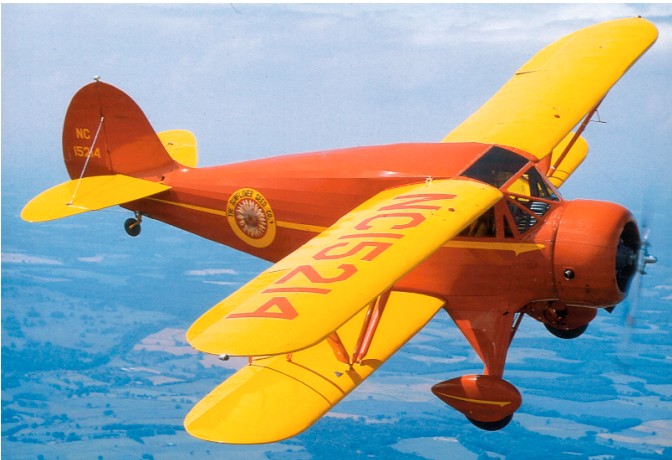

UKC
Date: Mar 1934
Engine: Continental R-670-A, 210 hp(157 kW)
Length OA: 25’3″(7.70m)
Span (upper): 33’3″(10.13m)
Span (lower): 28’3″(8.61m)
Maximum Speed: 143 mph(230 km/h)
Empty weight: 1,745 lb(792 kg)
Max gross weight: 2,850 lb(1,293 kg)
Maximum load: 1,105 lb(501 kg)
Price: $6,285

UKC
Date: Mar 1934
Engine: Continental R-670-A, 210 hp(157 kW)
Length OA: 28’10″(8.79m)
Span (upper): 33’3″(10.13m)
Span (lower): 28’3″(8.61m)
Maximum Speed: 126 mph(203 km/h)
Empty weight: 2,131 lb(967 kg)
Max gross weight: 3,250 lb(1,474 kg)
Maximum load: 1,119 lb(508 kg)

UKC-S
Date: 1935
Engine: Continental R-670-A, 210 hp(157 kW)
Length OA: 25’3″(7.70m)
Span (upper): 33’3″(10.13m)
Span (lower): 28’3″(8.61m)
Maximum Speed: 138 mph(222 km/h)
Empty weight: 1,720 lb(780 kg)
Max gross weight: 3,000 lb(1,361 kg)
Maximum load: 1,280 lb(580 kg)
Price: $5,225

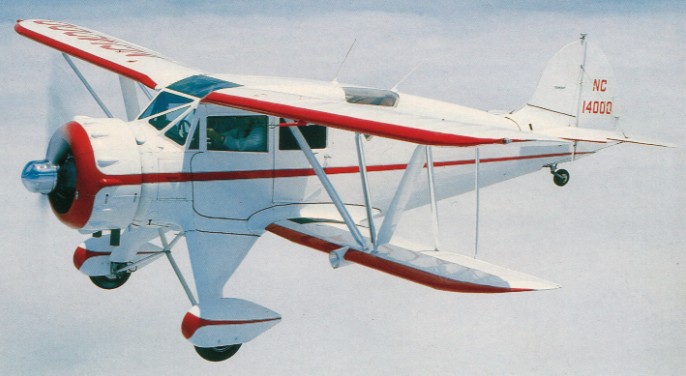

YKC
Date: Apr 1934
Engine: Jacobs L-4, 225 hp (168 kW)
Length OA: 25’4″ (7.72m)
Span (upper): 33’3″ (10.13m)
Span (lower): 28’3″ (8.61m)
Maximum Speed: 149 mph (240 km/h)
Empty weight: 1,800 lb (817 kg)
Max gross weight: 2,850 lb (1,293 kg)
Maximum load: 1,050 lb (480 kg)
Seats: 4
Price: $6,450

YKC
Date: Apr 1934
Engine: Jacobs L-4, 225 hp (168 kW)
Length OA: 28’10” (8.79m)
Span (upper): 33’3″ (10.13m)
Span (lower): 28’3″ (8.61m)
Maximum Speed: 130 mph (209 km/h)
Empty weight: 2,186 lb (992 kg)
Max gross weight: 3,250 lb (1,474 kg)
Maximum load: 1,064 lb (483 kg)
Seats: 4

YKC-S
Date: 1935
Engine: Jacobs L-4, 225 hp (168 kW)
Length OA: 25’4″ (7.72m)
Span (upper): 33’3″ (10.13m)
Span (lower): 28’3″ (8.61m)
Maximum Speed: 143 mph (230 km/h)
Empty weight: 1,773 lb (804 kg)
Max gross weight: 3,000 lb (1,361 kg)
Maximum load: 1,227 lb (557 kg)
Sets: 4
Price: $5,490

YKC-6
Date: 1936
Useful load: 1441 lb
Max speed: 144 mph
Cruise speed: 130 mph
Stall: 54 mph
