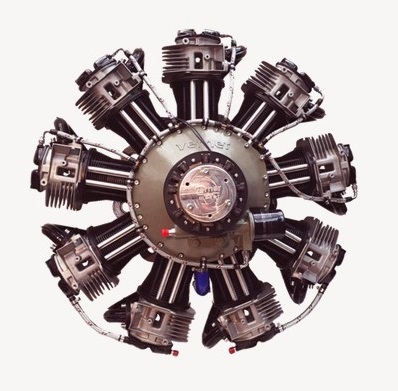

The Verner Scarlett 9S radial GA aircraft engine is a simple engine, the cylinders and pistons are supplied by VW and the heads by Honda, so spares are available world wide. The engines are all made to order, but delivery is set at a maximum of 3 months from order.
The engines are designed to run on mogas, use 20W60 motor oil and the filters are standard W712/22.
As at 2017 the 165hp 9 cylinder was priced at £24,980.00.
Scarlett 9S
Displacement: 6094 cc / 372 cubic inch
Pistons: 9
Cooled by: air
Bore: 92 mm
Stroke: 102 mm
Compression ratio: 1:7,8
Propeller rotation: CCW, viewed from the front (tractor prop)
Spark plugs: Brisk DR14YC-SUPER, Denso Q20PR-U
Electric starter: 12 V/1000 W
Alternator: 12 V/200 W
Lubrication: Total 20W60, Aeroshell oil 15W50
Fuel: motor petrol, octane number 95
EFI, carburetor: 2 + 1 jets, IMF ECU/ weber carb
Reduction drive: none
Propeller hub: 101,6 x 6 x 13 holes – M8
Max propeller: 220 cm
Installation: back
Recommended TBO: 1000 hours
Batteries: 12V 24Ah
