The Mini-MAX 1100R is a minimum cost aircraft, requiring a Minimum of building space, time or skill. A “Maximum” high of pure pleasure and performance.
Mini-MAX 1100R standard equipment:
Quick removable wings
Shoulder harness/seat belt
Full-span flaperons
Curved windshield
Strut-braced tail
5 gallon gas tank
2009 Price: 4795 US$
Tne Mini-MAX 1100R can be upgraded to models 1550R and 1260R.

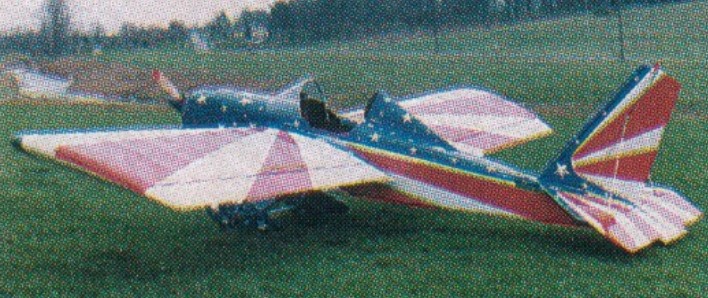

The 1200Z can be upgraded to the 1500R. First flown in 1984.

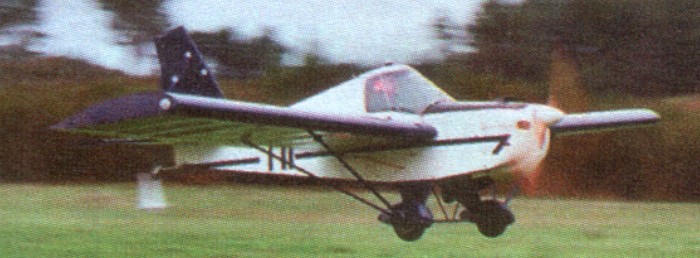

The TEAM 1300Z MiniMAX was first flown in 1991.

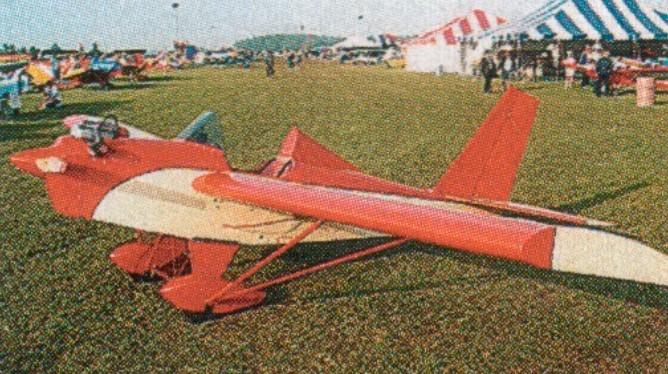

The 1500R was first flown in 1991. A Minimum-cost aircraft, requiring a Minimum of building space, time or skill. Wood was chosen as the basic building material. It is easy to work with, dependable in its strength characteristics, and is not bothered by the vibrations associated with 2-cycle engines.
1500R construction techniques are of the old-fashioned, tried and true wood truss and plywood gusset method. It is very simple, and builds quickly. If you have ever built a balsa-wood model airplane, you have the experience required to build this “full-scale” model. While construction time will vary from builder to builder, approximately 300 hours is the average.
The 1500R was also marketed as the JDT 1500R.
1500R SPORT Standard equipment:
Fiberglass engine cowl
Prop spinner
Quick removable wings
Shoulder harness/seat belt
Curved windshield
Strut-braced tail
5 USgallon gas tank
2009 Price: 5290 US$

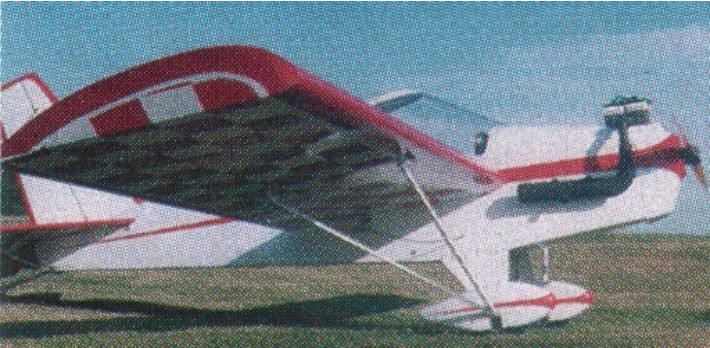

The TEAM1600R first flew in 1993.

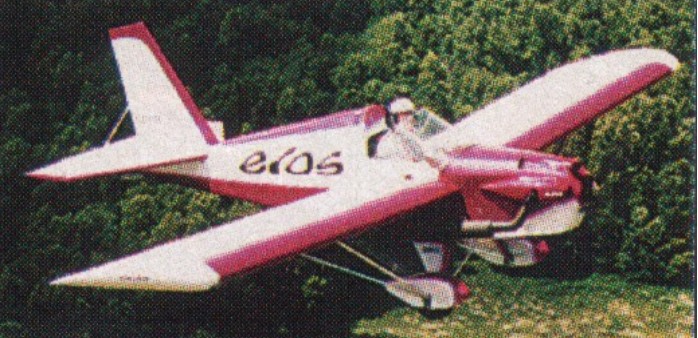

The 1650 Eros first flew in 1987.
1100F “Ultralight”
Engine: Hirth F-33
Flight controls: 3-Axis
Wingspan: 25′ 0″
Wing area: 112.5 sq. ft.
Wings: Removable
Length: 15′ 6″
Empty weight: 237 lbs.
Gross weight: 560 lbs.
Design load factors: +4.4 -1.8
Top speed: 70 mph
Cruise speed: 55 mph
Stall speed: 27-30 mph
Climb rate: 650 fpm
Vne: 90 mph
Take-off roll: 150 ft.
Landing roll: 180 ft
JDT Mini-Max 1100R
Engine: Rotax 447, 42 hp
Height: 5 ft
Length: 16 ft
Wing span: 25 ft
Wing area: 113 sq.ft
Fuel cap: 5 USG
Empty Weight: 121 kg / 267 lbs
MTOW Weight: 254 kg / 560 lbs
VNE: 87 kt / 100 mph / 161 kmh
Speed max: 86 mph
Cruise: 56 kt / 65 mph / 105 kmh
Range: 120 sm
Stall: 24 kt / 28 mph / 45 kmh
ROC: 1000 fpm / 5 m/s
Take-off distance (50ft obstacle): 100 ft / 30 m
Landing distance (50ft obstacle): 210 ft / 64 m
Service ceiling: 10,000 ft
Seats: 1
Landing gear: tail wheel
LSA: yes

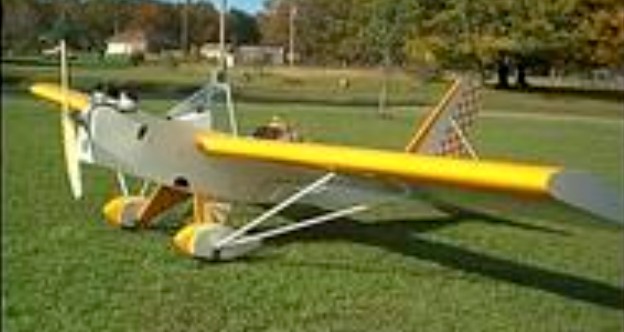

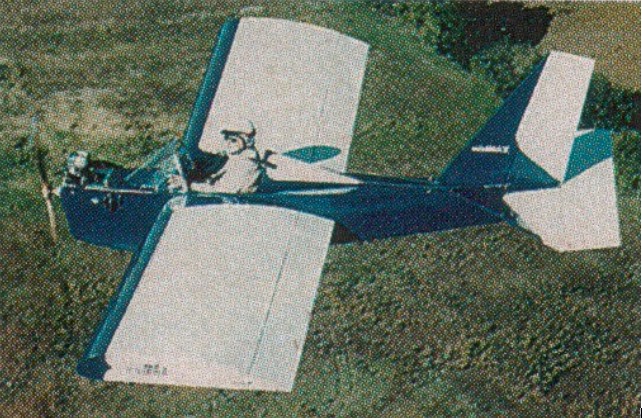

Team 1100R miniMAX
Engine: Rotax 447, 42 hp
Wing span: 8 m
Wing area: 11 sq.m
MAUW: 220 kg
Empty weight: 130 kg
Fuel capacity: 20 lt
Max speed: 140 kph
Cruise speed: 120 kph
Minimum speed: 55 kph
Climb rate: 5 m/s
Certification: PFA
Seats: 1
Fuel consumption: 8 lt/hr
Plan price (1998): 1125 Fttc
Kit price (1998): $3825
1200Z
Engine: Zenoah G-50, 42 hp
HP range: 30-50
Height: 5 ft
Length: 16 ft
Wing span: 25 ft
Wing area: 112.5 sq.ft
Fuel cap: 15 USG
Weight empty: 278 lbs
Gross: 560 lbs
Speed max: 100 mph
Cruise: 65 mph
Range: 150 sm
Stall: 28 mph
ROC: 1200 fpm
Take-off dist: 100 ft
Landing dist: 210 ft
Service ceiling: 12,500 ft
Seats: 1
Landing gear: tail wheel
TEAM 1300Z
Engine: Zenoah G50C, 42 hp
HP range: 30-50
Height: 5 ft
Length: 16 ft
Wing span: 25 ft
Wing area: 113 sq.ft
Fuel cap: 5 USG
Weight empty: 300 lbs
Gross: 560 lbs
Speed max: 86 mph
Cruise: 75 mph
Range: 200 sm
Stall: 35 mph
ROC: 1000 fpm
Take-off dist: 150 ft
Landing dist: 200 ft
Service ceiling: 10,000 ft
Seats: 1
Landing gear: tail wheel
1500R
Engine: Zenoah G-50, 42 hp
HP range: 30-50
Height: 5 ft
Length: 16 ft
Wing span: 25 ft
Wing area: 112.5 sq.ft
Fuel cap: 5 USG
Weight empty: 269 lbs
Gross: 560 lbs
Speed max: 100 mph
Cruise: 65 mph
Range: 150 sm
Stall: 28 mph
ROC: 1200 fpm
Take-off dist: 100 ft
Landing dist: 210 ft
Service ceiling: 10,000 ft
Seats: 1
Landing gear: tail wheel
JDT Mini-Max 1500R Sport
JDT Mini-MAX 1500R Open cockpit
Engine: Rotax 447, 42 hp
HP range: 30-50
Length: 16 ft
Wing span: 25 ft
Wing area: 112.5 sq.ft
Fuel capacity: 10 USG
Empty Weight: 122 kg / 269 lbs
MTOW Weight: 254 kg / 560 lbs
VNE: 87 kt / 100 mph / 161 kmh
Stall: 24 kt / 28 mph / 45 kmh
Cruise: 56 kt / 65 mph / 105 kmh
Range: 170 sm
Rate of climb: 1000 ft/min / 5 m/s
Take-off distance (50ft obstacle): 100 ft / 30 m
Landing distance (50ft obstacle): 210 ft / 64 m
Landing dist: 210 ft
Seats: 1
Cockpit width: 24 in
Landing gear: tailwheel
LSA: yes
1600R
Engine: Rotax 447, 42 hp
HP range: 30-50
Speed max: 100 mph
Cruise: 72 mph
Range: 180 sm
Stall: 28 mph
ROC: 1200 fpm
Take-off dist: 100 ft
Landing dist: 200 ft
Service ceiling: 10,000 ft
Fuel cap: 5 USG
Weight empty: 301 lbs
Gross: 560 lbs
Height: 5 ft
Length: 16 ft
Wing span: 25 ft
Wing area: 112.5 sq.ft
Seats: 1
Landing gear: tail wheel
JDT Mini-Max 1600R
Engine: Rotax 447, 42 hp
HP range: 30-50
Cruise: 72 mph
Range: 210 sm
Stall: 28 mph
ROC: 1200 fpm
Take-off dist: 100 ft
Landing dist: 210 ft
Fuel cap: 10 USG
Weight empty: 301 lbs
Gross: 560 lbs
Length: 16 ft
Wing span: 25 ft
Wing area: 112.5 sq.ft
Seats: 1
Landing gear: tail wheel
Cockpit width: 24in
1650 Eros
Engine: Rotax 503, 52 hp
HP range: 40-52
Height: 5 ft
Length: 16 ft
Wing span: 26.5 ft
Wing area: 118 sq.ft
Fuel cap: 5 USG
Weight empty: 345 lbs
Gross: 640 lbs
Speed max: 110 mph
Cruise: 85 mph
Range: 125 sm
Stall: 35 mph
ROC: 1600 fpm
Take-off dist: 125 ft
Landing dist: 225 ft
Service ceiling: 12,000 ft
Seats: 1
Cockpit width: 24 in
Landing gear: tail wheel
LSA: yes
