The Stinson R / R-1 (ATC 457) of 1932 was designed by Robert Ayer and C R Irvine as a four-place cabin high wing monoplane. A deluxe Junior, and forerunner of Reliant, powered by a 215hp Lycoming R-680 engine, the R-1 was to have a retractable gear added, but was never built.

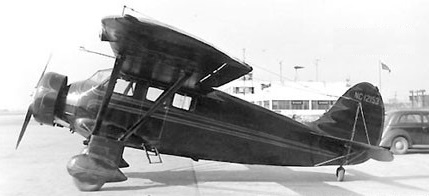

Thirty R-1 were sold, priced at $5,595, including NC436M/440M, NC446M/448M, NC479M, NC10861, NC10874, NC10876, NC12134, NC12139, NC12147/12156, prototype NC12178, NC12189, and NC12197.
Eddie Stinson was fatally injured in a crash landing of the prototype R on 25 January 1932.
The 1932 R-2 (ATC 489), powered with a 240hp Lycoming R-680 engine, was advertised for $6,497 with retractable gear modification, but none was produced as such. Three were built; NS40, NX447M, and NX12178 modified from R, and possibly one other.

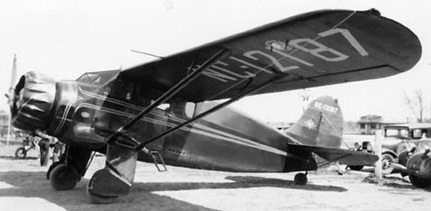

The 1933 R-3 (ATC 493) was the same as the R-2, but with fixed, non-operating prototypical retracting gear. Three were built; NC449M, NC12131, and NC12187, priced at $5,995. Only one was so modified to operating retractable gear as R-3S

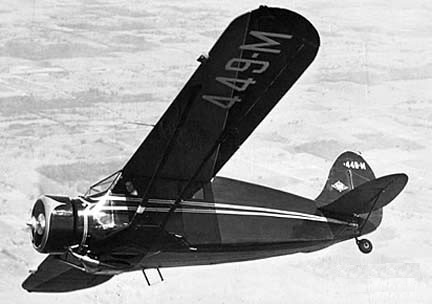

The 1934 R-3S (ATC 539) conversion from R-3 NC449M featured a 245hp Lycoming R-680 engine, controllable prop and other improvements.
R / R-1
Engine: 215hp Lycoming R-680
Wingspan: 43’3″
Length: 26’1″
Useful load: 1100 lb
Max speed: 130 mph
Cruise: 110 mph
Stall: 52 mph
Range: 450 mi
Ceiling: 12,500′
Seats: 4
R-2
Engine: 240hp Lycoming R-680
Wingspan: 43’3″
Length: 26’2″
Useful load: 1210 lb
Max speed: 138 mph
Cruise: 118 mph
Stall: 62 mph
Range: 550 mi
Seats: 4
R-3
Engine: 240hp Lycoming R-680
Wingspan: 43’3″
Length: 26’2″
Useful load: 1210 lb
Max speed: 133 mph
Cruise: 112 mph
Stall: 62 mph
Range: 450 mi
Seats: 4
R-3S
Engine: 245hp Lycoming R-680
Wingspan: 43’3″
Length: 26’2″
Useful load: 1010 lb
Max speed: 133 mph
Cruise: 112 mph
Stall: 52 mph
Range: 450 mi
Seats: 4
