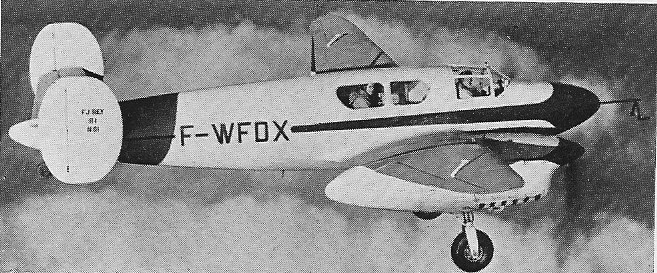

The R-1 was an experimental twin-engine monoplane with variable- incidence wings, first flown with normal wings on 16 December 1949, and with articulated wings in 1951.
Original patents taken out in 1938 and an aircraft built in 1940, but was destroyed during the war. Two prototypes were built, of wooden construction, powered by two Renault 6R engines.
The outer wing panels are articulated on an oblique hinge-line and these orientate automatically in turbulent air, the varying incidence absorbing the loads imposed.
Engines: two Renault 6R, 216 hp
Wingspan: 43 ft 2.5 in
Length: 30 ft 2 in
Height: 11 ft 11 in
Empty weight: 4950 lb
Loaded weight: 6490 lb
Max speed: 202 mph
Time to 3280 ft: 4 min 10 sec
Ceiling: 19,025 ft
