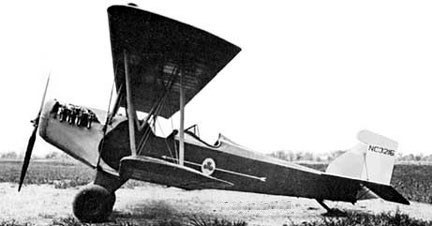

The 1927 PA-4 Fleetwing 2, or Deluxe, received ATC 2-21. The prototype NC3216 later converted to PA-4W.
Eleven were built; C1514, X2359, C3216, C3228, C4920, NC7032, NC7443, NC7558, NC7756/7757.
The 1928-30 PA-4K and PA-4W Fleetwing 2 were approved for 100hp Kinner K-5 (ATC 2-230) and 110hp Warner Scarab (ATC 2-193). One each -4K [NC10130] and -4W [NC3216] for conversions as engine test-beds.
PA-4 Fleetwing 2 / Deluxe
Engine: 90hp Curtiss OX-5
Wingspan: 33’0″
Length: 22’2″
Useful load: 785 lb
Max speed: 102 mph
Cuise: 87 mph
Stall: 45 m
Range: 400 mi
Seats: 3
PA-4K Fleetwing 2
Engine: 100hp Kinner K-5
PA-4W Fleetwing 2
Engine: 110hp Warner Scarab
