The PIK-26 Mini-Sytky is a single-seater ultra-light aircraft. The structure is entirely wood, except the wing and rudder which are cut from PVC foam. The one-piece wing attaches with two bolts to the main arch of the frame and its rear spar to the lower part of the backrest. Hinged flaps are fitted. The wing can be detached from below, leaving the frame resting on the landing gear.
The cockpit features a sidestick.

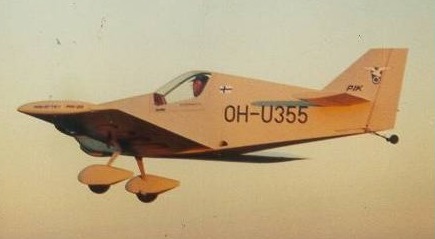

Designed by Kai Mellén and first built in 1996, at least four ave been built: OH-U355, OH-U356, OH-U403, and OH-U404. .

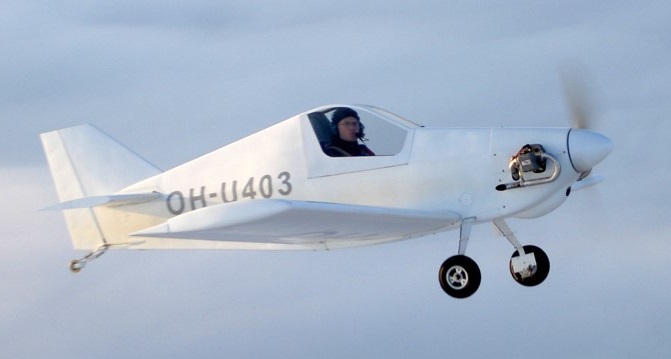

Mini-sytky OH-U403
Engine: Mosler MMCB HO2, 35 hp
Propeller: 48 “(122cm) x 38 “(96.5 cm)
Wing span: 5.24 m
Wing chord: 1.15 m
Wing area: 6 sq. m
Airfoil: GAW-2
Length: 4.33 m
Height: 1.22 m
Load limit: +3.8, -1.5 g
Empty Weight: 144 kg
Gross Weight: 250 kg
Fuel capacity: 27 lt / 20 kg
Useful Load: 106 kg
Luggage capacity: 5 kg
Vne: 190 km/h
Top Speed 3250 rpm: 180 km/h
Cruise@3000rpm: 160 km/h
Stall w/flaps: 55 kph
Stall clean: 60 km / h
Maximum flap speed: 120 km / h
Maximum manoeuvre speed: 125 km / h
Fuel Consumption: 7-8 lt/hr
Rate of Climb: 3.2 m/s
Takeoff Distance: 170 m
Landing Distance: 250 m
TO to 15 m: 600 m
Landing dist from 15 m: 500 m
Climb speed: 100-110 mph
Endurance: 3.25 hr
Range: 475 km
Wing loading: 41.6 kg/sq.m
Seats: 1
Wheel track: 1.21 m
Wheelbase: 3.27 m
Rudder: 0.22 sq.m
Vertical stabilizer: 0.56 sq.m
Vertical stabilizer profile: NACA 0011
Rudder: 0.38 sq.m
Rudder profile: NACA 0009
Aspect Ratio: 4.56
Didedral: 4 degrees
Aileron movement: – 35, + 27
Flap deflection: 16 deg
Rudder movement: + – 28 deg
Elevator movement: 20 deg up, 12 deg down
Tires: LAMB 11.400-5 (6ply)
Wheels: 5 ” AZUZA
Brakes: AZUZA, mechanical
