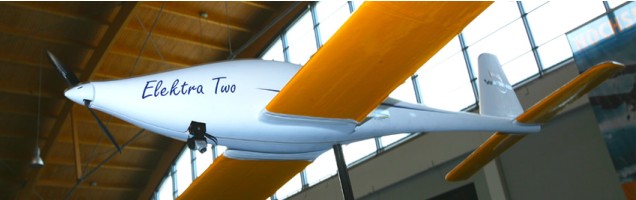

The Elektra Two aircraft are scaled versions of the Elektra One Solar. Two versions are:
Version 1: Elektra Two Standard, with two different wing span: 17 meters and 14 meters
Version 2: Elektra Two Record. Only one unit for a range over 2000 km was to be built.
The outer shape of the Elektra Two Standard is the same as the Elektra Two Record. Two versions will be provided: the long span version (17 meters) and the short span version (14 meters).
Elektra Two Standard (long & short version) are for cruise, flying clubs and training
Construction is carbon / glass and solar cells on the wing surface provide the energy to fly. The solar cells will be laminated in the wing skin structure.
Specifications
Elektra Two Standard
Max. engine power: 40 kW
Wing span: 14 m / 17 m
Wing surface: 15 sq.m / 19 sq.m
MTOW: 350 kg
Empty weight: 200 kg
Battery weight: up to 100 kg
Payload: 180 kg
Max. range:
14 m wing span: 500 km
17 m wing span: 700 km
Max. endurance:
14 m wing span: 5 hours
17 m wing span: 8 hours
Cruise:
14 m wing span: 140 km/h
17 m wing span: 120 km/h
Aspect ratio:
14 m wing span: 13
17 m wing span: 15
Best glide ratio:
14 m wing span: 28
17 m wing span: 34
Certification: LTF-UL germany
Elektra Two Record
Max. engine power: 16 kW
Wing span: 17 m
Wing surface: 19 sq.m
MTOW: 350 kg
Empty weight: 140 kg
Battery weight: 80 kg
Payload: 150 kg
Max. range: more than 2,000 km
Max. endurance: over 20 hours
Cruise: 80 km/h
Aspect ratio: 15
Best glide ratio: 34
Certification: LTF-UL Germany
