Based at Glendale, California, Fred Pastorius and Stanley Pederson designed the W-1 Skylark two-seat light cabin monoplane in 1935.

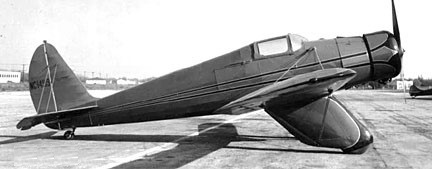

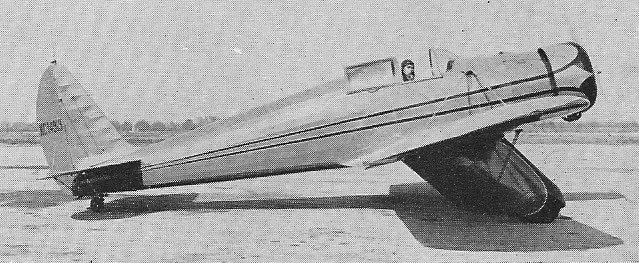

A prototype was built (ATC 2-546) NX/NC14919 c/n 1, powered with a 125 hp Warner Scarab engine. The W-1 was equipped with full-panted gear and side-by-side cockpit with optional enclosure. It was later approved for 145-165hp Warners, but only the one was built at a price of $4,485.

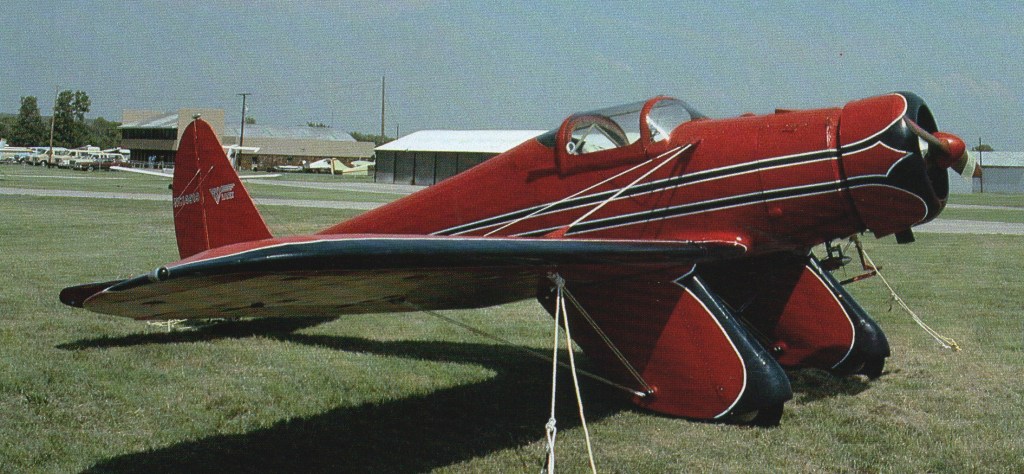

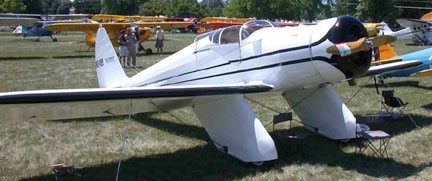

The prototype survived and was restored to flight circa 2002.
Engine: Warner Scarab, 125 hp
Wing span: 35’11”
Wing area: 187 sq.ft
Length: 25’0″
Height: 7 ft 11 in
Empty weight: 1288 lb
Loaded weight: 1775 lb
Useful load: 597 lb
Max speed: 139 mph
Cruise sped: 125 mph
Stall: 35 mph
ROC: 850 fpm
Service ceiling: 16.000 ft
Range: 475 mi
Seats: 2
