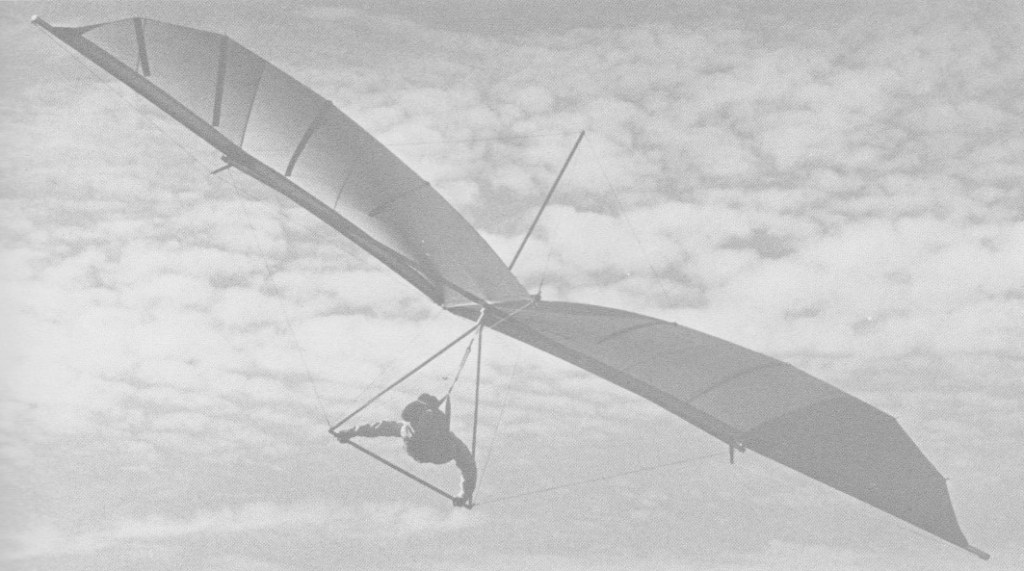

Manufactured by Manta Produts and, with slightly different materials and construction, by Flight Realities, the Windlord I is a Rogallo design for advanced pilots. It features a shorter keel, greater aspect ratio and glide ratio than a standard Rogallo.
The airframe is made from 6061-T6 1.5in x .049 anodised aluminium tubing with hardwood dowels and with bushings. Rigging cable is 3/32in 7×7 stainless steel with snap-on cable cover optional. The cable is double swagged at every connection point.
The sail is 3.8oz stabilised dacron, double zig-zag stitched, reinforced at stress points, with spar-flex compensation for clean inflight shape, perpendicular-sewn seams for dimensional stability. It was available in 10 colours.
All bolts are AN or MS quality, and are self-locking nuts. Noseplate, tangs and thimbles are stainless steel.
The control bar is fully adjustable for seated flying with individual leg straps, or the optional prone harness. The control bar folds down, has neoprene cushioning and optional whee assembly. It also featured adjustable keel reflex, optional take-down to 6 ft 6 in, and a no-tool set-up or take-down.
Manufactured by Manta Products and, with slightly different materials and construction, by Flight Realities, the Windlord III is a higher performance Rogallo. It has an increased glide ratio, penetration, positive control response and higher speed for maximum glide, making it easy to handle in higher winds and turbulence as well as marginal soaring conditions.
As with the Windlord I, the airframe is made from 6061-T6 1.5in x .049 anodised aluminium tubing with hardwood dowels and with bushings. Rigging cable is 3/32in 7×7 stainless steel with snap-on cable cover optional. The cable is double swagged at every connection point.
The sail is 3.8oz stabilised dacron, double zig-zag stitched, reinforced at stress points, with spar-flex compensation for clean inflight shape, perpendicular-sewn seams for dimensional stability. It was available in 10 colours.
All bolts are AN or MS quality, and are self-locking nuts. Noseplate, tangs and thimbles are stainless steel.
The control bar is fully adjustable for seated flying with individual leg straps, or the optional prone harness. The control bar folds down, has neoprene cushioning and optional whee assembly. It also featured adjustable keel reflex, optional take-down to 6 ft 6 in, and a no-tool set-up or take-down.
Windlord I 18×15
Leading edge: 18.5 ft
Keel length: 15 ft
Wing span: 26.75 ft
Wing area: 190 sq,ft
Aspect ratio: 3.81
Nose angle: 92˚
Sail billow: 3˚
Weight: 39 lb
Pilot weight: 140-170 lb
Takeoff speed: 19 mph
Stall speed: 18 mph
Max speed: 38 mph
Best glide ratio (L/D): 6-1
Best L/D speed: 21 mph
Minimum sink: 350 fpm
Windlord I 19×15
Leading edge: 19.5 ft
Keel length: 15.5 ft
Wing span: 27.5 ft
Wing area: 210 sq,ft
Aspect ratio: 3.81
Nose angle: 92˚
Sail billow: 3˚
Weight: 40 lb
Pilot weight: 160-190 lb
Takeoff speed: 19 mph
Stall speed: 18 mph
Max speed: 38 mph
Best glide ratio (L/D): 6-1
Best L/D speed: 21 mph
Minimum sink: 350 fpm
Windlord I 20×16
Leading edge: 20.5 ft
Keel length: 16 ft
Wing span: 29 ft
Wing area: 230 sq,ft
Aspect ratio: 3.81
Nose angle: 92˚
Sail billow: 3˚
Weight: 41 lb
Pilot weight: 175-220 lb
Takeoff speed: 19 mph
Stall speed: 18 mph
Max speed: 38 mph
Best glide ratio (L/D): 6-1
Best L/D speed: 21 mph
Minimum sink: 350 fpm
Windlord III 17×14
Leading edge: 17.5 ft
Keel length: 14 ft
Wing span: 23.5 ft
Wing area: 155 sq,ft
Aspect ratio: 3.56
Nose angle: 85˚
Sail billow: 3.5˚
Weight: 38 lb
Pilot weight: 110-135 lb
Takeoff speed: 16 mph
Stall speed: 15 mph
Max speed: 42 mph
Best glide ratio (L/D): 5-1
Best L/D speed: 20 mph
Min sink: 400 fpm
Windlord III 18×15
Leading edge: 18.5 ft
Keel length: 15 ft
Wing span: 24.8 ft
Wing area: 176 sq,ft
Aspect ratio: 3.49
Nose angle: 85˚
Sail billow: 3.5˚
Weight: 39 lb
Pilot weight: 130-155 lb
Takeoff speed: 16 mph
Stall speed: 15 mph
Max speed: 42 mph
Best glide ratio (L/D): 5-1
Best L/D speed: 20 mph
Min sink: 400 fpm
Windlord III 19×16
Leading edge: 19.5 ft
Keel length: 16 ft
Wing span: 26.3 ft
Wing area: 197 sq,ft
Aspect ratio: 3.51
Nose angle: 85˚
Sail billow: 3.5˚
Weight: 40 lb
Pilot weight: 150-180 lb
Takeoff speed: 16 mph
Stall speed: 15 mph
Max speed: 42 mph
Best glide ratio (L/D): 5-1
Best L/D speed: 20 mph
Min sink: 400 fpm
Windlord III 20×17
Leading edge: 20.5 ft
Keel length: 17 ft
Wing span: 27.5 ft
Wing area: 220.5 sq,ft
Aspect ratio: 3.43
Nose angle: 85˚
Sail billow: 3.5˚
Weight: 41 lb
Pilot weight: 175-220 lb
Takeoff speed: 16 mph
Stall speed: 15 mph
Max speed: 42 mph
Best glide ratio (L/D): 5-1
Best L/D speed: 20 mph
Min sink: 400 fpm
