The JetPROP DLX is essentially a firewall forward conversion of the Piper PA-46 Malibu. Prior to mounting the Pratt & Whitney PT6A-35 turbine, the old piston engine is removed and the firewall is rebuilt.
Conversion begins in earnest with the mating of Pratt & Whitney’s 750hp PT6A-35 turbine engine to the Malibu/Mirage airframe. The intake nacelle includes an ice door to prevent damage to the PT6A-35 engine.

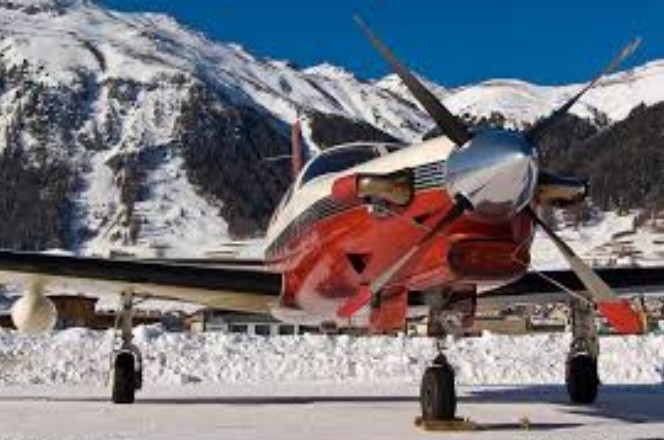

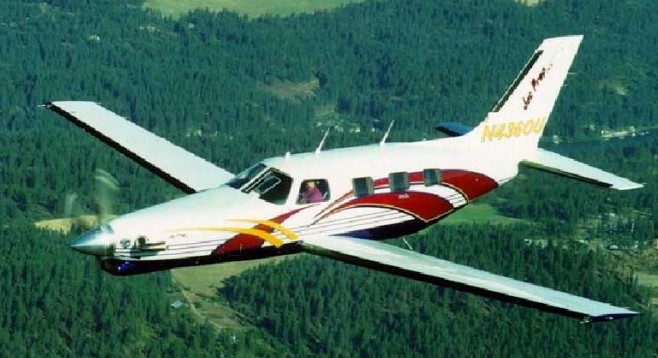

JetPROP DLX
Engine: P&W PT6A-35, 560 hp flat rated
Wingspan: 43′
Length: 30′ 1″
Height: 11′ 3″
Cabin Length: 12′ 3″
Empty Weight: 2,950 lb
Ramp Weight: 4,318 lb
Takeoff Gross Weight: 4,300 lb
Useful Load: 1,358 lb
Payload 356 lb
Max. Landing Weight: 4,100 lb
Baggage Capacity: 100 lb
Fuel Capacity: 151.1 USG
Noise Level: 69 dB
Fuel Burn (Idle): 14 USGPH
Climb Rate (Initial): 3,000 FPM
Takeoff – Over 50′: 1,200′
Landing – Over 50′: 1,000′
Service Ceiling: 27,000′
Max. Speed: 265+ knots
Normal Speed: 260 knots
Normal Range: 1,000 NM
Long Range Speed: 235 knots
Long Range: 1,100+ NM
Normal Fuel Burn: 34 USGPH
Stall Speed (Flaps Down): 61 kt
