Between 1915 and 1916 at the Shchetinin Factory and based on a Grigorovich project, two “land” models were designed (in Russian Sujoputnie and hence the S in the name as opposed to the M for Morskoi or naval). The objetive of these models was to increase the performance of the Farman biplanes that the factory built under license.
The first of these projects, known as S-1 (Григоровича С-1), was designed as a conventional biplane heavily influenced by Farman’s designs and equipped with a rotary engine. Construction was abandoned before the prototype was finished.

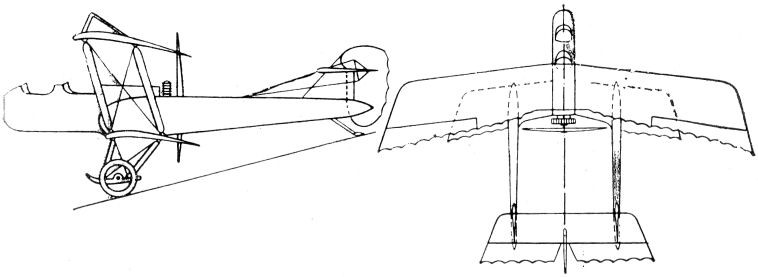

A second model, called S-2, was designed as a two-seater aerial observation and reconnaissance aircraft and generally repeated the successful scheme of the Farman biplanes with a central nacelle and a rotary engine. As a “novelty” it is worth noting the use of double tail cones that ended in individual empennages joined by the stabilizer with the elevators.
The selected powerplant was the 100 hp French Gnôme Monosoupape.
The entire construction was made of wood, covered with fabric. The wings had an Eifel-36 profile and were characterized by a large difference in span between both planes and the use of parallel uprights with cable tensioners.
The S-2 was built and its assembly was completed in January 1916. During flight tests, conducted by pilot Ya. I. Siedov, an accident occurred and the plane was not restored as it was considered that there was no point in trying to improve the outdated Farman designs
