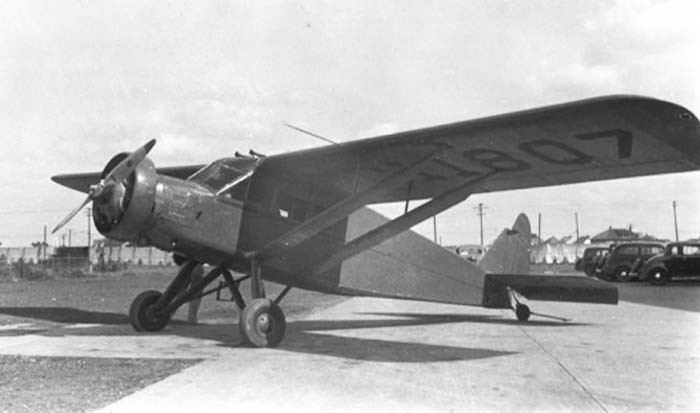

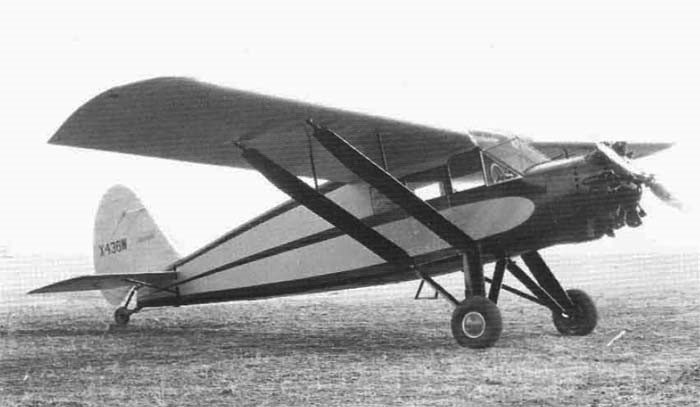

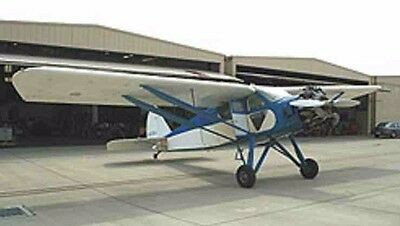

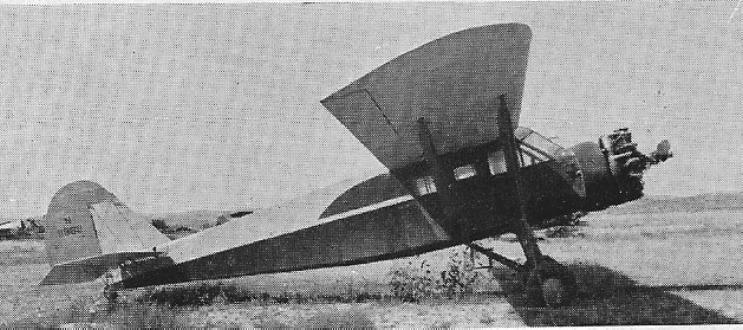

The Curtiss-Wright CW-15 Sedan was a four-seat utility aircraft produced in small numbers in the United States in the early 1930s. It was a braced high-wing monoplane with conventional tailwheel landing gear with a fully enclosed cabin, superficially resembling the Travel Air 10. At the time of the CW-15’s design, Travel Air had recently been acquired by Curtiss-Wright.
Designed by Walter Burnham, the CW-15 Sedan first flew in 1931 and 15 were built.
The -15 Sedan was initially produced with the 180 hp Curtiss Challenger and 210 hp Kinner C-5 engines, but the remaining examples were powered by 300 hp Wright Whirlwind (Sedan 15-D) and 245 hp Jacobs (Sedan 15-N).
CW-15C
Engine: Curtiss R-600 Challenger, 185 hp (138 kW)
Propeller: 2-bladed fixed-pitch metal
Wingspan: 46 ft 5 in (14.15 m)
Wing area: 240 sq ft (22 m2)
Airfoil: Göttingen 593
Length: 30 ft 5 in (9.27 m)
Height: 8 ft 10 in (2.69 m)
Empty weight: 2,083 lb (945 kg)
Gross weight: 3,281 lb (1,488 kg)
Maximum speed: 115 mph (185 km/h; 100 kn)
Cruise speed: 97 mph (156 km/h; 84 kn)
Range: 525 mi (456 nmi; 845 km)
Service ceiling: 12,000 ft (3,700 m)
Rate of climb: 600 ft/min (3.0 m/s)
Crew: 1
Capacity: 3 pax
nine built
Sedan 15-D
Engine: 300 hp Wright Whirlwind
Wing span: 43 ft 5 in
Wing area: 215.06 sq.ft
Length: 30 ft 5 in
Height: 9 ft 7 in
Empty weight: 2121 lb
Loaded weight: 3319 lb
Max speed: 135 mph
ROV: 750 fpm
Service ceiling: 14,000 ft
Range: 500 mi
Three built
CW-15N
Engine: Kinner C-5
three built
