British Aircraft Co B.A.C. IV

An improved version of the B.A.C. III appearing in April 1931 was the B.A.C. IV with longer, tapered wings. Only one being built.

One was sold to Mr C M C Turner of the Channel Gliding Club. For an intended channel crossing. it was towed to 10,000 ft by Sqn Ldr Probyn in his Westland Widgeon G-EBRQ on 18 June 1931, but this was not high enough for the planned flight.

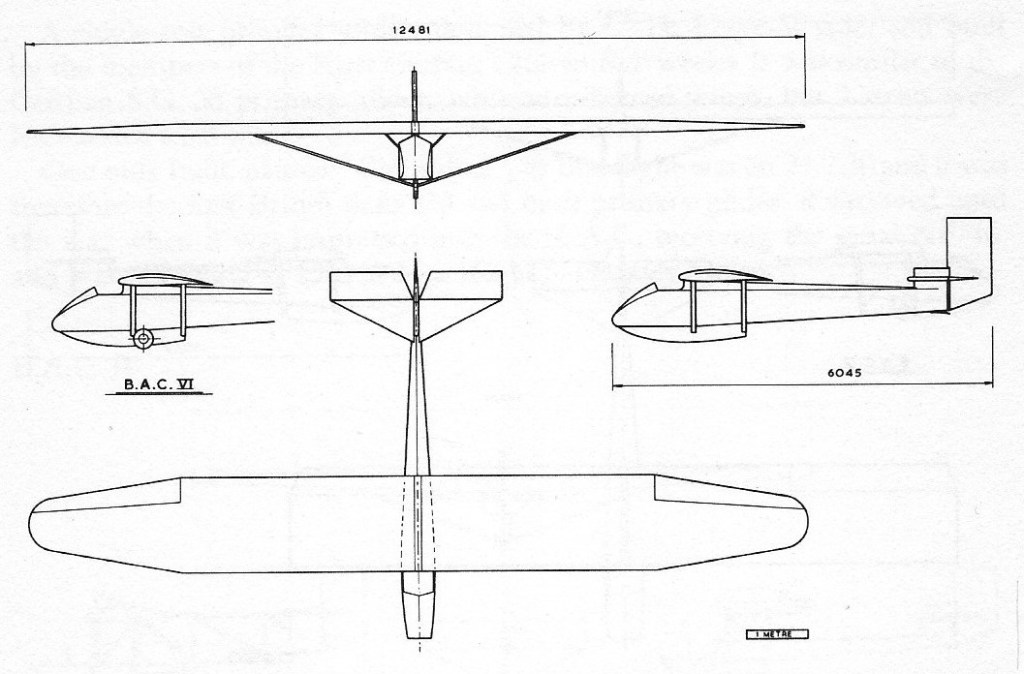

When fitted with wheels the B.A.C. IV was re-designated B.A.C. VI.

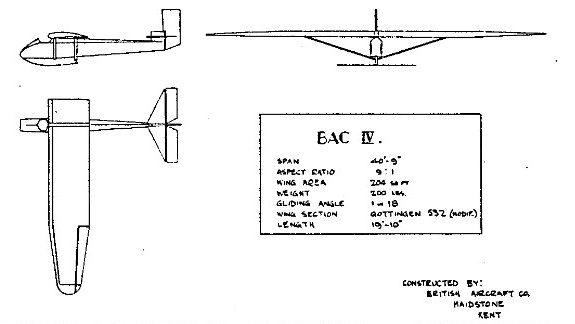

Wing span: 12.48 m / 40 ft 9 in
Length: 6.05 m / 19 ft 10 in
Wing area: 17.09 sq.m / 184 sq.ft
Aspect ratio: 9
Wing section: Gottingen 532 modified
Empty weight: 90.72 kg / 200 lb
Max L/D: 18
