Blume BL.502

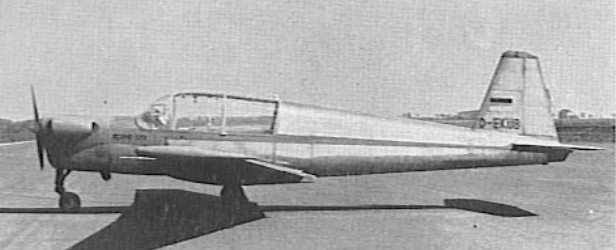

In 1956 after restrictions on aircraft construction in Germany were lifted Walter Blume produced, a modernized version of the Ar 79. The canopy was extended rearward, the fin was replaced by a more modern form, the wing replaced by an all metal wing and the landing gear replaced by a tricycle undercarriage. The original Hirth engine Hirth being no longer available, was replaced by the Lycoming O-320.

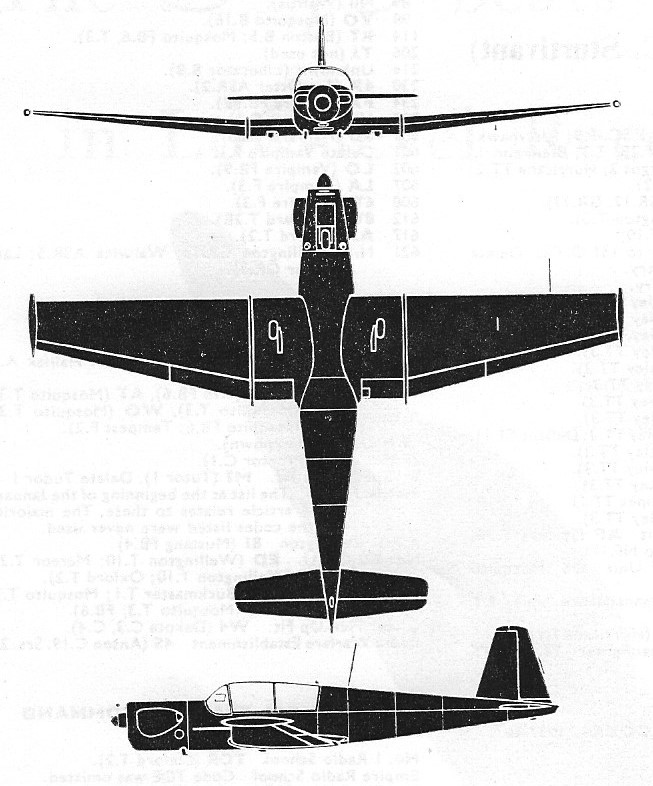

A four-seater with straight-tapered flying surfaces, there are wingtip fairings to increase the effective aspect ratio and boundary-layer fences between the centre-section and outer wing panels. Two fuel tanks are in the wing centre section, one on each side of the fuselage.

Engine: Lycoming 150 hp
Wingspan: 34 ft 5 in
Length: 26 ft 9 in
Height: 7 ft 10.5 in
Empty weight: 1350 lb
Loaded weight: 2337 lb
Max speed: 149 mph at SL
Cruise: 133 mph
Range: 630 mph
Prop: 2 blade variable pitch
Seats: 4

Bl.502
