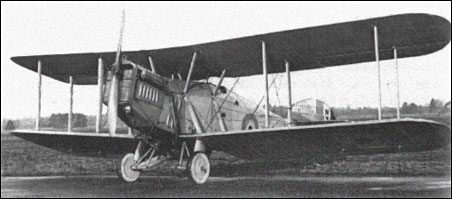

The Blackburn T1 Swift was a private venture torpedo bomber developed by the Blackburn Aeroplane and Motor Company primarily for export sales (whilst having regard to the desire of the Air Ministry to replace the Sopwith Cuckoo). The prototype, designed by Major Frank Arnold Bumpus, was shown in near-complete form at the Olympia Aero Show in July 1920.

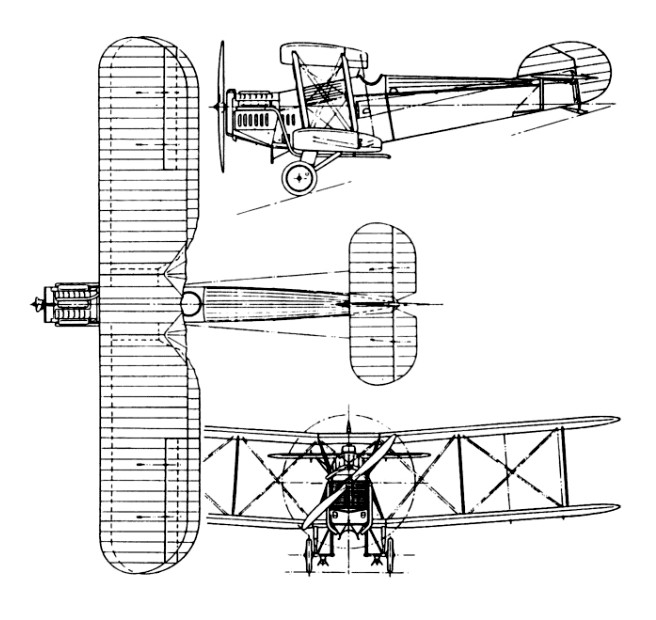

The Blackburn T1 Swift was a large conventional single seat two-bay tractor biplane with divided undercarriage legs to accommodate a torpedo. It was also provided with folding wings for stowage aboard ship. The longerons sloped down ahead of the pilot’s cockpit to improve the forward view for deck-landing.
On the first flight in September 1920, the first prototype was found to be seriously tail-heavy and barely controllable. It was safely landed after a wide and flat circuit at low level. The balance of the aircraft was quickly restored by applying a few degrees of sweep to the outboard wing panels.

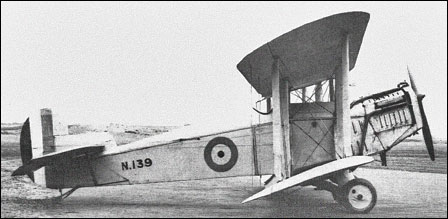

The prototype was sent for trials at Aeroplane and Armament Experimental Establishment (A&AEE) at Martlesham Heath on 21st December 1920, carrying an RAF serial (N139). At Martlesham, it was tested with the Mk VIII and the Mk IX 15-inch torpedo and these trials resulted in the adoption of a revised rudder geometry. After further minor modifications, it proceeded to conduct deck landing trials on HMS Argus in May 1921.

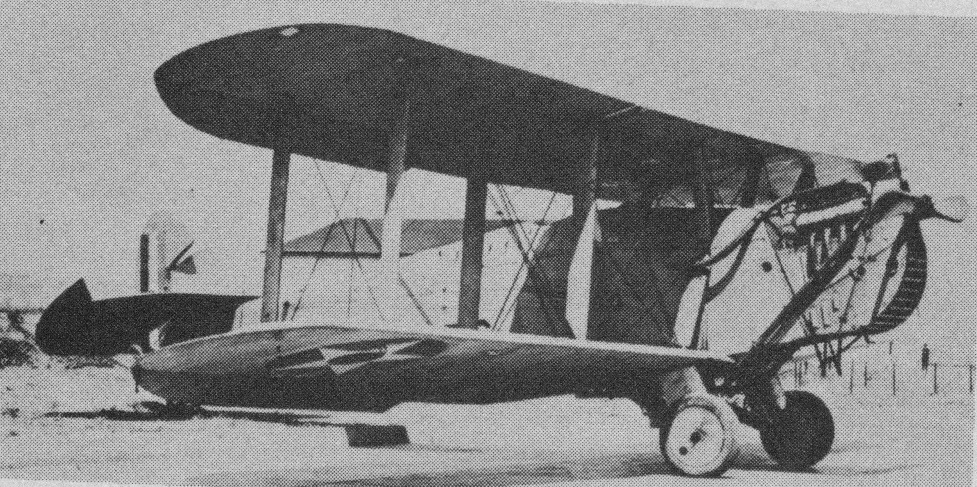

Blackburn then sought export orders for the type, obtaining sales for two aircraft to the US Navy (A-6056 and A-6057) which were to be known the Blackburn Swift F. Later, a further two Blackburn Swift II aircraft were purchased by the Imperial Japanese Navy, as well as a further three (M-NTBA, M-NTBB and M-NTBC) which were sold the Spanish Navy. The export aircraft featured a sloping, front radiator and a further revision to the tail surfaces.
Such was the promise of the design that it was adopted (following minor modifications such as a 35-inch reduction in wingspan) as the standard Fleet Air Arm torpedo aircraft, subsequently renamed the Blackburn T2 Dart.
Engine: 1 x 450hp Napier Lion IB
Take-Off Weight: 2860 kg / 6305 lb
Empty Weight: 1612 kg / 3554 lb
Wingspan: 14.78 m / 48 ft 6 in
Length: 10.82 m / 35 ft 6 in
Height: 3.73 m / 12 ft 3 in
Wing Area: 66.89 sq.m / 720.00 sq ft
Max. Speed: 171 km/h / 106 mph
Ceiling: 4572 m / 15000 ft
Range: 564 km / 350 miles
Armament: 4 x 100kg bombs or a torpedo
