The design for a 50-seat medium-range civil transport began in 1946 initially proposed with two Rolls-Royce Avon turbojets but by autumn 1947 it was apparent these were not available. The design was modified to take four 3600 Rolls-Royce Derwent 5s.

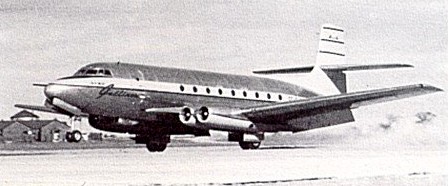

With tricycle landing gear, and four turbojets, the prototype was first flown on 10 August 1949, but only six days later was badly damaged through a landing gear failure. It was repaired and flying again within a few weeks, and its four Derwent 5 engines were replaced by two Derwent 8s (starboard outer, port inner) and two Derwent 9s for evaluation. Construction of a second C-102 prototype began, but was not completed.
The C-102 integral fuel tanks have 1375 Imp.Gal inboard and 1025 Imp.Gal outboard giving a total capacity of 2400 Imp.Gal.

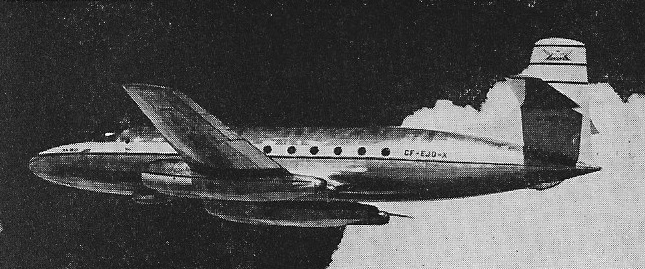

Despite an aggressive marketing campaign directed at U.S. airlines and the USAF, the sales prospects of the Jetliner floundered after the launch customer, Trans-Canada Airlines, reneged on a letter of intent in 1948. The company was still attempting to get the CF-100 into production at the time and, consequently, the Canadian government cancelled any further work on the C102 due to Korean War priorities: C. D. Howe demanded the project be stopped to increase production of the CF-100, so the second C102 prototype was scrapped in the plant in 1951, with the first relegated to photographic duties in the Flight Test Department. After a lengthy career as a camera platform and company “hack,” CF-EJD-X was flown for the last time on 23 November 1956 and broken up in 1956, having flown about 425 hours. The nose section now resides in the Canada Aviation Museum in Ottawa.
C-102
Engines: 4 x Rolls-Royce Derwent 5, 1633kg / 3600 lb
Wingspan: 29.90 m / 98 ft 1 in
Wing area: 107.49 sq.m / 1157.01 sq ft
Length: 25.12 m / 82 ft 5 in
Height: 8.06 m / 26 ft 5 in
Take-off weight: 29480 kg / 64993 lb
Empty weight: 16740 kg / 36906 lb
Max. speed: 735 km/h / 457 mph
Cruise speed: 650 km/h / 404 mph
ROC: 1595 fpm
Ceiling: 12285 m / 40300 ft
Range: 2000 km / 1243 miles
