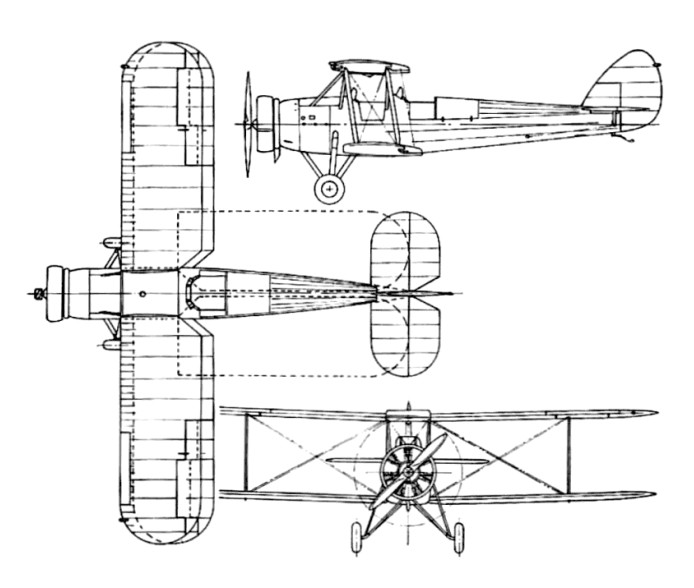

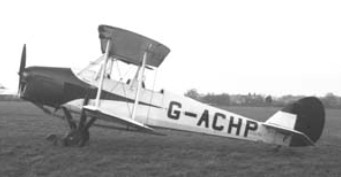

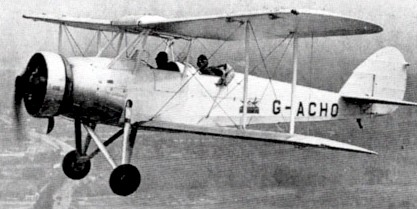

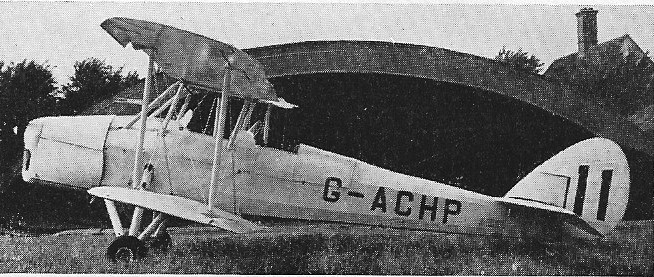

The Avro 638 Club Cadet and the basically similar 643 Cadet Mk.II were produced in the 1930s. Both types have identical wings, undercarriage and tail unit, but the wings of the Cadet have more stagger than those of the Club Cadet to provide improved view from both cockpits.
Engines used were the 130 hp DH Gipsy Major 1 and 135 hp AS Genet Major radial.
1933
Engine: 1 x 135hp Armstrong Siddeley Genet Major I
Take-off weight: 908 kg / 2002 lb
Empty weight: 565 kg / 1246 lb
Wingspan: 9.19 m / 30 ft 2 in
Length: 7.54 m / 25 ft 9 in
Height: 2.67 m / 9 ft 9 in
Wing area: 24.34 sq.m / 261.99 sq ft
Max. speed: 185 km/h / 115 mph
Cruise speed: 161 km/h / 100 mph
Range: 523 km / 325 miles
