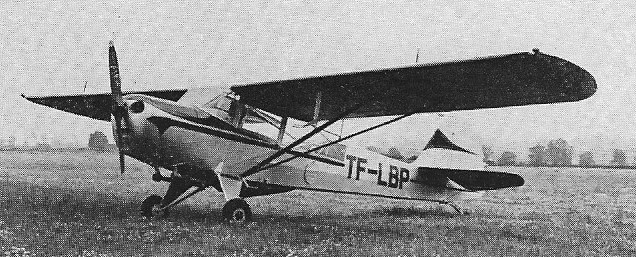

The Auster 5 is a three-seat civil conversion of the (Model J) A.O.P.5, 790 of which were produced during war years. The Auster 5 retains the 130 hp Lycoming O-290-3/1 engine as does the Auster 5A four seat conversion.
The first version of the two-seat Aiglet, the J/1B, appeared in 1949, and was essentially a modified Autocraft with a re-designed fin and rudder assembly and a Gipsy Major engine.
Auster Mk.V / J/1 Autocrat / Aiglet Article
Building and assembling the Autocrat was carried out in two different sections one dealing with the mainplanes, and the other with the fuselage. The fuselage was constructed of welded steel tube. The first stage in its assembly was the rough weld, where the framework was tack welded in such a fashion as to preclude the possibility of frame distortion while it underwent the next process, known as clustering. In this operation the fuselage framework was held in a jig, rotated about its centre line and welded again, this time where several tubes met hence the clustering. Smaller parts of the framework were then tack-¬welded in position and, finally, the fuselage underwent a full weld and cheek before passing on to the sandblasting and paint spraying shops. The fuselage was then ready for the assembly lines.
Stringers were fitted, together with the tanks, floorboards, control torque shaft etc, and then the line moved forward for fabric covering. This was followed by doping and taping.
The Perspex roof and panels, in addition to the inner cabin fittings, such as the seat frames, then the tail surfaces were attached to the main frame.
The wings were of straightforward construction, with nicrol ribs and laminated spruce spars.
Most of the fabric covering on the wings and fuselage was carried out by women, who formed a large proportion of the 350 people then employed by Auster Aircraft at Thurmaston.
The wheels were then installed and, after the instruments had been inserted, the front bulkhead and the windscreen were mounted. The Blackburn Cirrus Minor Series II engine was then installed, and the cowling and doors were fitted, by which time the airframe had been completely doped in its colour scheme. The upholstery was added after doping. The wings were not fitted in the factory, the major sub-assemblies being transported by road to the assembly shops at Rearsby for final rigging and air testing.

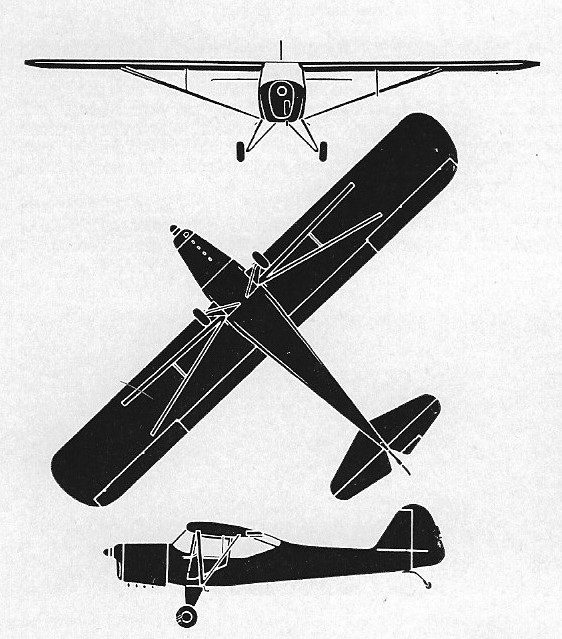

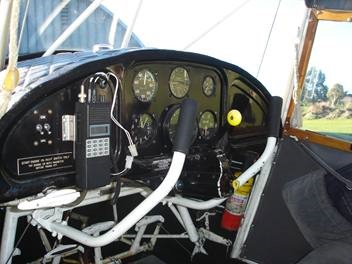

With a long range slipper tank, the Mk.V had a range of 600 miles (960 km) at a cruise speed of 85 mph. The Auster J/1 Autocrat, built in 1946 as a three-seater, was powered by 100 HP Blackburn Cirrus II. A lower powered version of the Mk.V AOP the first production model flew in March 1946. The Autocrat seats up to four. Similar to the Mk.V, the most obvious difference was an upholstered interior and basic fixed instrument panel. Structurally, corner braces replaced the rear upper cabin tube, a one-piece moulded windscreen was fitted, and the side and rear cabin windows were shortened.
Only 420 of the three-seat J/1 Autocrats were manufactured by Auster Aircraft before the introduction of the four-seat J/1A. In 1946, was priced at £975.
Also in 1949, Auster completed modifications to the Autocrat for crop dusting and successful demonstrations were carried out near Rearsby.

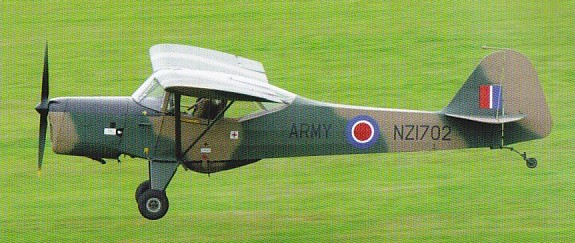

804 aircraft built, including three floatplanes, based on the Mk IV but with an improved instrument panel for blind and night flying capability.

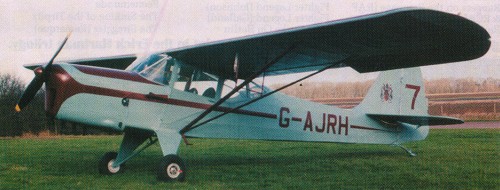

Variations included the J/lA with a fourth seat and the J/1N Alpha powered by a 120 HP DH Gipsy Major and the J/1B Aiglet which returned to the Cirrus. A usual load for the Aiglet was 5cwt (250kg). Only one of the Mk.Vc was produced, for the 1950 King’s Cup Race, powered by 140 hp Gipsy Major 1. At least one was fitted with a Lycoming O-290 of 130 hp.

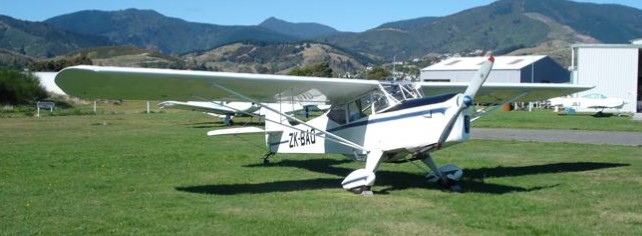

The J/1B Aiglet introduced in 1950 was originally conceived as a topdressing and agricultural aircraft. It was powered by the same 130 hp Gipsy Major I engine used in the J/5, and was almost identical to the Autocrat with the exception of a revised fuel system, shorter landing gear and a larger horn-balanced rudder.

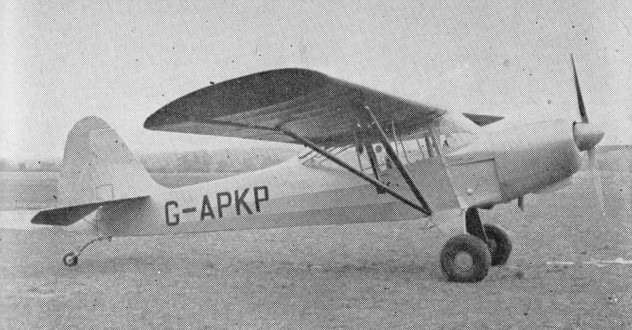

Auster Aircraft at Rearsby developed the J-1U Workmaster for agricultural work. Powered by a 180 hp Lycoming O-360-A, the first flight was on 22 February 1958. The model was in production for 1958.
By 1955 more than fourteen nations were using the Aiglet Trainer (Gipsy Major 10 engine) for various civil and military duties. A side-by-side two seater, a third seat can be fitted at the rear. The Aiglet Trainer has a relatively short wing span which is four feet less than previous Austers. The fuselage is welded steel tube construction, and the wings have two wooden spars and light alloy and steel ribs. They are fitted with dual controls and wheel brakes.

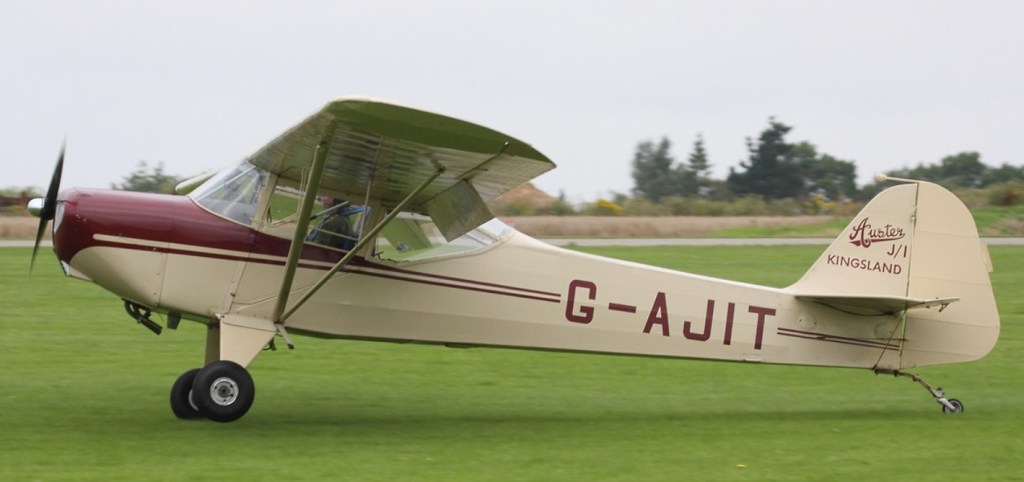

Five Auster J/1 were modified to two-seater with a Continental O-200, AOP.6 wings, split flaps, Cessna 150 wing mounted fuel tanks and wheel/brake assemblies. These Auster Kingsland received LAA Type Number 815.
The J/1N produced in 1957 was almost identical to the J/1B Aiglet but was equipped with two seats in the front of the cabin and a bench seat in the rear for one adult and two children. It was fitted with the same Gipsy Major engine as the Aiglet but included and oil cooler.
Auster 5
Engine: 130 hp Lycoming O-290-3/1
Wingspan: 36 ft
Length: 22 ft 5 in
Height: 6 ft 8 in
Empty weight: 1050 lb
Loaded weight: 1850 lb
Max speed: 130 mph
Cruise: 112 mph
Seats: 3
Mk.V
Engine: Lycoming O-290C, 120 hp.
Auster 5A
Engine: 130 hp Lycoming O-290-3/1
Seats: 4
Auster 5C
Engine: 145 Gipsy Major I
Mk5D
Engine: Lycoming 0320 E2D 150HP
Maximum all up weight 2100lbs
Empty weight 1350lbs
Useful weight 750lbs
J/1
Engine: Cirus Minor.
J/1 Autocrat
Engine: Blackburn Cirrus Minor 2, 90 hp
Wingspan: 36 ft
Wing area: 185 sq.ft
Length: 23 ft 5 in
Height: 6 ft 6 in
Empty weight: 1052 lb
Loaded weight: 1850 lb
Max speed: 120 mph
Cruise: 100 mph
Ceiling: 15,000 ft
Range: 320 mi
Seats: 3
420 built
J/1B Aiglet
Engine: 1 x 145HP Gipsy Major VII
Wing span: 11 m (36 ft)
Length: 7.1 metres (23 ft 5 in)
Fuel capacity top tank 68 litres
Bottom tank 63 litres
Burns 32 litres per hour at 2400 revs
Endurance 3.75 hours
Cruise speed 92 knots
Takes off approx 100 -120 metres solo
Seats: Three or four
J/1N Alpha
J/1U Workmaster
J/1Y
Engine: Lycoming O-320, 160hp.
Kingsland
Engine: Continental O-200, 100 hp
Seats: 2
