The A-2 was an original design by J A Phillips of the Allied Aircraft Corporation and the first prototype (NX3153K) first flew on 9 April 1948 under the power of a 145hp Continental C145-2 engine, piloted by Harry Ragland.
It was followed by a second prototype (which was destroyed in a hangar fire) and a third example was not completed and development was then shelved.

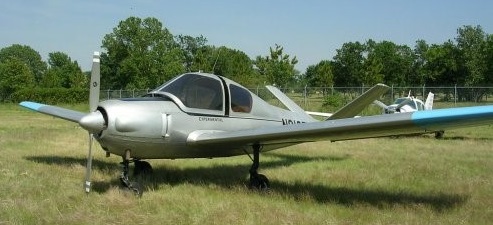

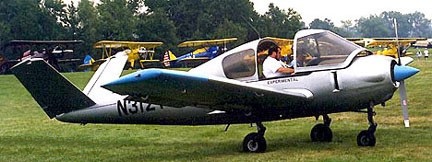

NX3153K was later extensively modified (possibly around 1970) by Mr. Thomas J. Ballentine who amongst others installed a 210hp Continental IO-360 and it was renamed as TJ-2 and registered N312TJ.
The aircraft is now in the collection of the Kansas Aviation Museum, Wichita, Kansas, and received it original designation back.
A-2
Engine: 185hp Continental O-470
Wingspan: 35’0″
Length: 24’0″
Useful load: 1075 lb
Max speed: 155 mph
Cruise: 150 mph
Stall: 48 mph
Range: 600 mi
Seats: 4
TJ-2
Engine:
Seats: 4
