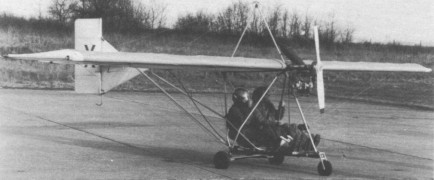

Side by side two seat single engined highwing monoplane with conventional three axis control. Wing has unswept leading and trailing edges, and constant chord; cruciform tail. Pitch control by elevator on tail; yaw control by fin mounted rudder; roll control by ailerons; control inputs through stick for pitch/roll and pedals for yaw. Wing braced from above by kingpost and cables, from below by cables; wing profile double surface. Undercarriage has three wheels in tricycle formation with additional tailskid; steel spring suspension on nosewheel and torsion bar suspension on main wheels. Push right go right nosewheel steering connected to yaw control. Optional brake on nosewheel. Aluminium tube framework, with optional pod. Engine mounted below wing driving tractor propeller.
Designed by Philippe Tisserand, the two seat version made its first flight in December 1982. Apart from the engine position, very few changes were deemed necessary on this machine, which is directly descended from the single seater.
First sales were in February 1983. Like its elder, it is of conventional three axis control with large control surfaces. The two seater retains the advantage of being foldable to small dimensions, so it can be car topped or carried on a trailer; folded it measures 16.5 x 1.8 x 1.8ft (5.50 x 0.50 x 0.50m). It is offered as standard with the Hirth 2701R engine of 43hp or the Rotax 503 of 46 hp with toothed belt reduction. A partial fairing of the cockpit area is offered as an option. Also, Aeronautic 2000 offers it in kit form complete, for export only, a move aimed particularly at the American continent. Composed of pre formed factory built units, cut and drilled, this kit requires 100h for assembly. The Baroudeur Biplace is fitted with dual controls as standard version.
Engine: Rotax 503, 46hp at 6500rpm
Propeller diameter: 63 in, 1.6 m
Reduction ratio: 2.5/1
Max static thrust: 287 lb, 130 kg
Power per unit area: 0.30hp/sq.ft, 3.3hp/sq.m
Fuel capacity main: 5.3 US gal, 4.4 Imp gal, 20.0 lt
Fuel capacity reserve: 6.6 US gal, 5.5 Imp gal, 25.0 lt
Length overall: 18.1 ft, 5.5 m
Height overall: 8.2 ft, 2.5 m
Wing span: 29.6 ft, 9.0 m
Constant chord: 5.1ft, 1.55m
Dihedral: 2 degs
Sweepback: 0 degs
Tailplane span: 7.9ft, 2.40 m
Total wing area: 151 sq.ft, 14.0 sq.m
Total aileron area: 16.2 sq.ft, 1.5 sq.m
Rudder area: 7.5 sq.ft, 0.7 sq.m
Fin area: 4.3 sq.ft, 0.4 sq.m
Tailplane area: 16.2 sq.ft, 1.5 sq.m
Total elevator area: 9.7 sq.ft, 0.9 sq.m
Wing aspect ratio: 5.78/1
Wheel track: 4.5 ft, 1.35 m
Wheelbase: 4.9 ft, 1. 45 m
Nosewheel dia. Overall: 12 in, 30 cm
Main wheels dia. Overall: 12 in, 30cm
Empty weight: 287 lb, 130kg
Max take off weight: 662 lb, 300kg
Payload: 375 lb, 170kg
Max wing loading: 4.38 lb/sq.ft, 21.4kgsq.m
Max power loading: 14.4 lb/hp, 6.5kg/hp
Load factors: +6, 2.5 design
Max level speed: 62 mph, 100 kph
Never exceed speed: 71 mph, 115 kph
Max cruising speed: 56 mph, 90 kph
Economic cruise: 50 mph, 80 kph
Stalling speed: 24 mph, 40 kph
Max climb rate SL: 600ft/min, 3.0m/s
Min sink speed: 37 mph, 60 kph
Min sink rate: 350 ft/min, 1.7 m/s
Best glide ratio: 10/1 at 37 mph, 60 kph
Take off distance: 165 ft, 50 m.
Land¬ing distance: 165 ft, 50 m
Service ceiling: 10,000ft, 3050 m
Range at ave. cruise: 186 mile, 300 km
