About 10 of the 1930 AKL-26 (ATC 203) were built, including 3 AKL-60 prototypes, and one as the AKL-26 Special (ATC 2-111) in 1932 for twin-float modification. New price was US$3,500 or $4,500 as a floatplane.
The AKL-26A (ATC 204) of 1929 was fitted with an extra fuel tank, selling for US$3,550. About 40 were built, of which at least one, NC163M, was refitted with 80hp Genet engine. In 1934 a twin-float conversion, N159M, was made as the Uppercu AKL-26A (ATC 2-466).
The AKL-26B / AKL-85 / Model 85 Flyer (ATC 334) of 1930 sold new for US$$3,700, $3,300 in 1931 or $4,700 as floatplane (ATC 2-467). At least 14 were built, of which some were converted to AKL-27, also produced in 1930.

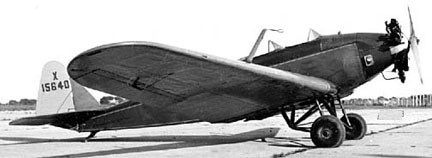

The AKL-26 Special (AKL-26X) (ATC 2-404) NX15640 c/n 2-64 was built in 1932, powered by a 65hp Velie M-5 engine.
The AKL-27 of 1930 was the same AKL-26B with 110hp LeBlond 7DF engine. NR387N and N863W were produced.
Three AKL-60 were built in 1930, from AKL-26; NC120H, NC122H and NC123H.
Variants:
Aeromarine-Klemm
AKL-26
production of AKL-60; LeBlond engine (1930)
AKL-26 Sp
twin-float modification (1930)
AKL-26A
extra fuel tank, LeBlond engine (1929, 1 conversion)
L-26A
Kantner twin-float conversion (marketed under the company name Uppercu) (1934, 14+ built)
L-26B
also as AKL-85, AKL-26B or Model 85 FLYER; LeBlond 5DF engine; floats possible (1930)
L-26X
version with 65hp Velie M-5 engine (1932)
AKL-27
heavier conversions of L-26B with 110hp LeBlond 7DF engine; also known as L-27 (1930)
Specifications:
AKL-26
Engine: Le Blond , 5D 65hp
Wing span: 40 ft 2 in
Length: 23 ft 6 in
Payload: 595 lb
Max speed: 93 mph
Cruise speed: 80 mph
Stall speed: 38 mph
Range: 325 sm
Seats: 2
AKL-26A
Engine: Le Blond, 5D 65hp
Wing span: 40 ft 2 in
Length: 23 ft 6 in
Payload: 565 lb
Max speed: 93 mph
Cruise speed: 80 mph
Stall speed: 40 mph
Range: 480 sm
Seats: 2
AKL-26B / AKL-85 / Model 85 Flyer
Engine: LeBlond 5DF, 85hp
Wing span: 40 ft 2 in
Length: 23 ft 6 in
Payload: 574 lb
Max speed: 97 mph
Cruise speed: 85 mph
Stall speed: 40 mph
Range: 385 sm
AKL-26 Special /AKL-26X
Engine: Velie M-5, 65hp
AKL-27
Engine: Le Blond 7DF, 65hp
Wing span: 40 ft 2 in
Length: 23 ft 6 in
Payload: 595 lb
Max speed: 93 mph
Cruise speed: 80 mph
Stall speed: 38 mph
Range: 325 sm
Seats: 2
AKL-60
