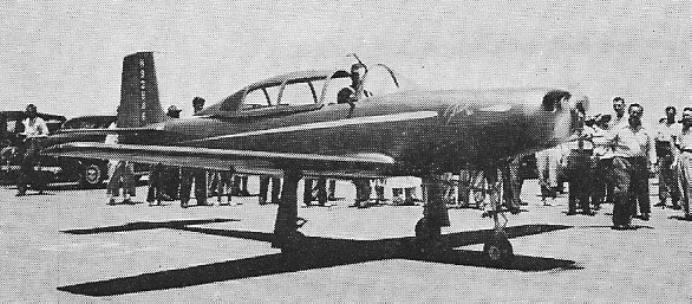

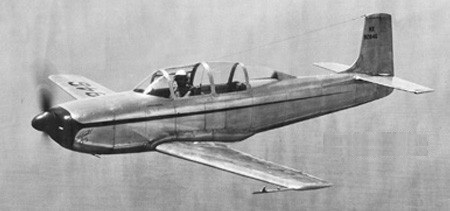

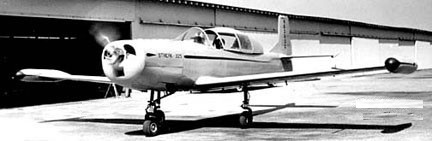

The Streak two-seat all-metal monoplane was developed by the Aero-Flight Aircraft Corporation of California in three versions which were similar apart from fuel capacities and engines.
Designed by James Nagamatsu (ex-Curtiss Co), the cost was $3,995. Two were built, including NX92846. NX92846 was repowered at Long Beach in Oct 1947 with 125hp Continental C-125 as AFA-2, and c.1949 as AFA-3 with 165hp Continental C-125.
Project abandoned after failing to arouse interest in a saturated post-war market.
AFA-1 Streak-85
Engine: Continental C85-12J, 85 hp
Wingspan: 25’3″
Length: 21’2″
Useful load: 559 lb
Max speed: 175 mph
Cruise: 165 mph
Stall: 52 mph
Range: 700 mi
Ceiling: 17,000′
Seats: 2
AFA-2 Streak-125
Engine: Continental C125, 125 hp
Wingspan: 25’3″
Length: 21’8″
Useful load: 600 lb
Max speed: 203 mph
Cruise: 192 mph
Stall: 55 mph
Range: 600-750 mi
Seats: 2
AFA-3 Streak-165
Engine: Franklin, 165 hp
Wing span: 25 ft 3 in
Length: 22 ft 4 in
Empty weight: 1060 lb
Loaded weight: 1695 lb
Max speed: 219 mph
Cruise: 210 mph
ROC: 2000 fpm
Max range: 1065 mi
Seats: 2
